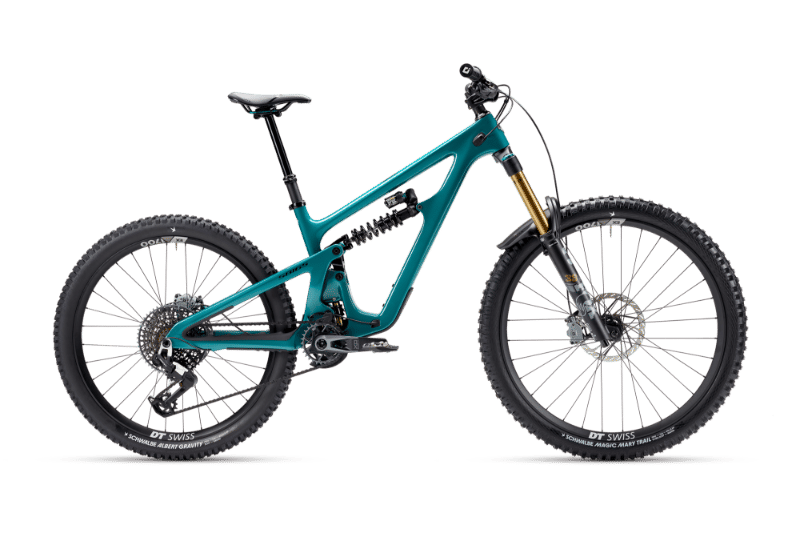

2026 Yeti SB165 geometry
Full frame geometry for the 2026 Yeti SB165, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 620 | 430 | 76.8 | 63.5 | 95 | 573 | 365 | 730 | 774 | 433 | 1207 | 44 |
| MD | 625 | 460 | 76.9 | 63.5 | 101 | 604 | 400 | 738 | 807 | 435 | 1242 | 44 |
| LG | 630 | 480 | 76.9 | 63.5 | 107 | 625 | 440 | 744 | 829 | 437 | 1266 | 44 |
| XL | 640 | 505 | 76.9 | 63.5 | 118 | 653 | 470 | 750 | 859 | 439 | 1298 | 44 |
All measurements in millimetres unless marked (°) for angles.
