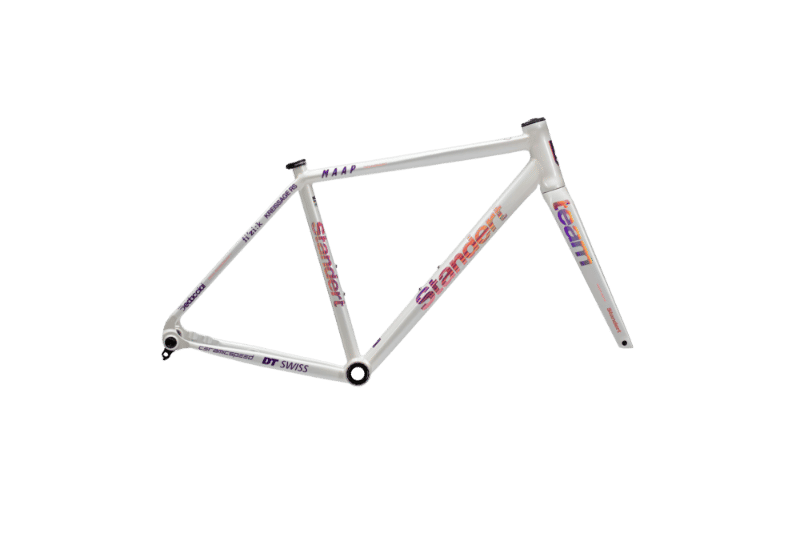

2026 Standert Kreissäge RS geometry
Full frame geometry for the 2026 Standert Kreissäge RS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 521 | 372 | 76.5 | 71.3 | 120 | 497 | 460 | 733 | 405 | 969 |
| 50 | 530 | 379 | 76 | 72.5 | 125 | 511 | 465 | 740 | 405 | 968 |
| 52 | 539 | 385 | 75.5 | 73 | 133 | 525 | 475 | 749 | 405 | 973 |
| 54 | 549 | 387 | 74 | 73 | 145 | 544 | 485 | 760 | 410 | 984 |
| 56 | 565 | 392 | 73.5 | 73.5 | 160 | 559 | 500 | 774 | 410 | 988 |
| 58 | 584 | 399 | 73.5 | 73.5 | 180 | 572 | 520 | 794 | 410 | 1001 |
| 60 | 598 | 407 | 73.5 | 73.5 | 195 | 584 | 535 | 808 | 410 | 1013 |
All measurements in millimetres unless marked (°) for angles.
