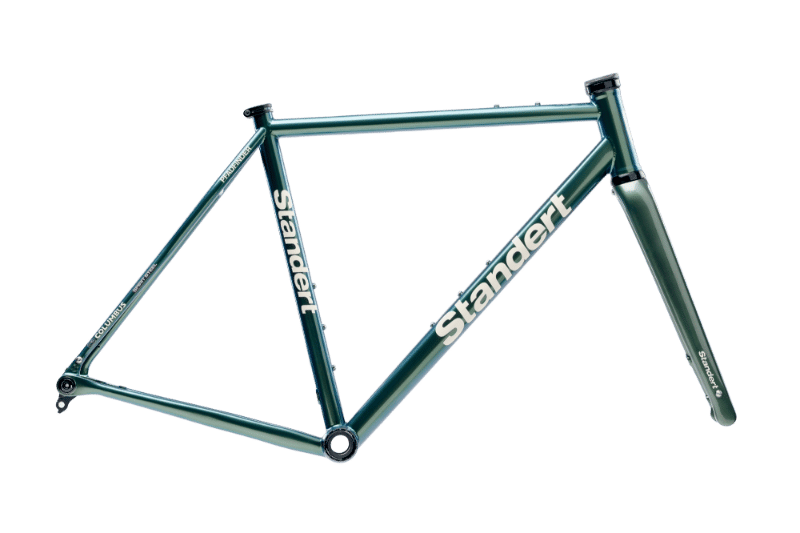

2026 Standert Pfadfinder geometry
Full frame geometry for the 2026 Standert Pfadfinder, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 523 | 370 | 76 | 71.3 | 98 | 500 | 477.5 | 743 | 415 | 982 |
| 50 | 533 | 371 | 75 | 71.5 | 108 | 514 | 495.5 | 758 | 415 | 985 |
| 52 | 543 | 375.5 | 74.5 | 71.5 | 118 | 526 | 507.5 | 767 | 415 | 992 |
| 54 | 558 | 383 | 74 | 72.3 | 131 | 543 | 527.5 | 789 | 415 | 998 |
| 56 | 577 | 390 | 73.5 | 73.3 | 148 | 561 | 547.5 | 808 | 415 | 1001 |
| 58 | 593 | 399 | 73.5 | 73.3 | 164 | 575 | 567.5 | 819 | 415 | 1015 |
| 60 | 605 | 411 | 73.5 | 73.3 | 177 | 590 | 582.5 | 834 | 415 | 1030 |
All measurements in millimetres unless marked (°) for angles.
