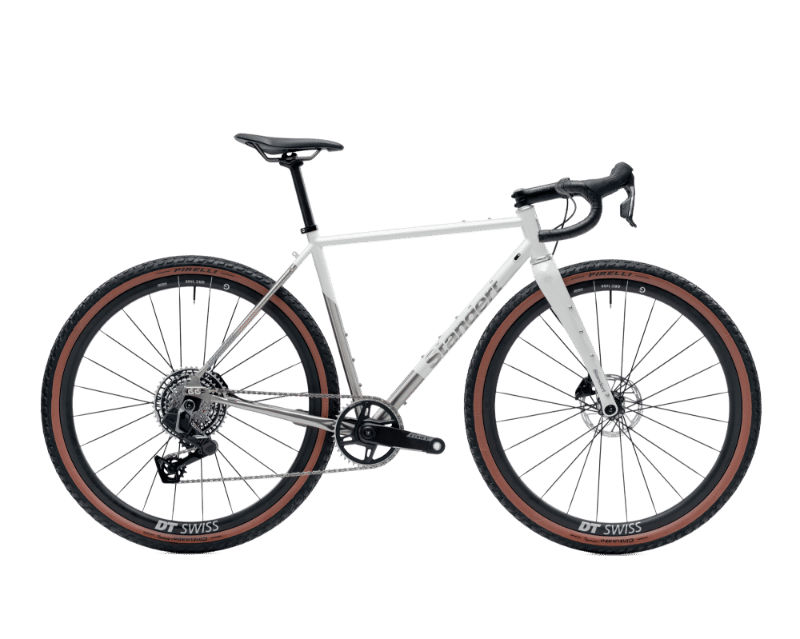

2026 Standert Erdgeschoss geometry
Full frame geometry for the 2026 Standert Erdgeschoss, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 519 | 373 | 76.5 | 71.3 | 89 | 500 | 460 | 746 | 425 | 996 |
| 50 | 529 | 381 | 75.5 | 71.3 | 100 | 520 | 480 | 760 | 425 | 1008 |
| 52 | 539 | 384 | 75 | 71.5 | 110 | 530 | 500 | 774 | 425 | 1012 |
| 54 | 551 | 386 | 74 | 71.5 | 122 | 545 | 520 | 789 | 425 | 1018 |
| 56 | 568 | 391 | 73.5 | 72 | 138 | 560 | 540 | 805 | 425 | 1024 |
| 58 | 589 | 394 | 73 | 72 | 160 | 575 | 560 | 826 | 425 | 1034 |
| 60 | 610 | 398 | 73 | 72.5 | 180 | 585 | 580 | 846 | 425 | 1039 |
All measurements in millimetres unless marked (°) for angles.
