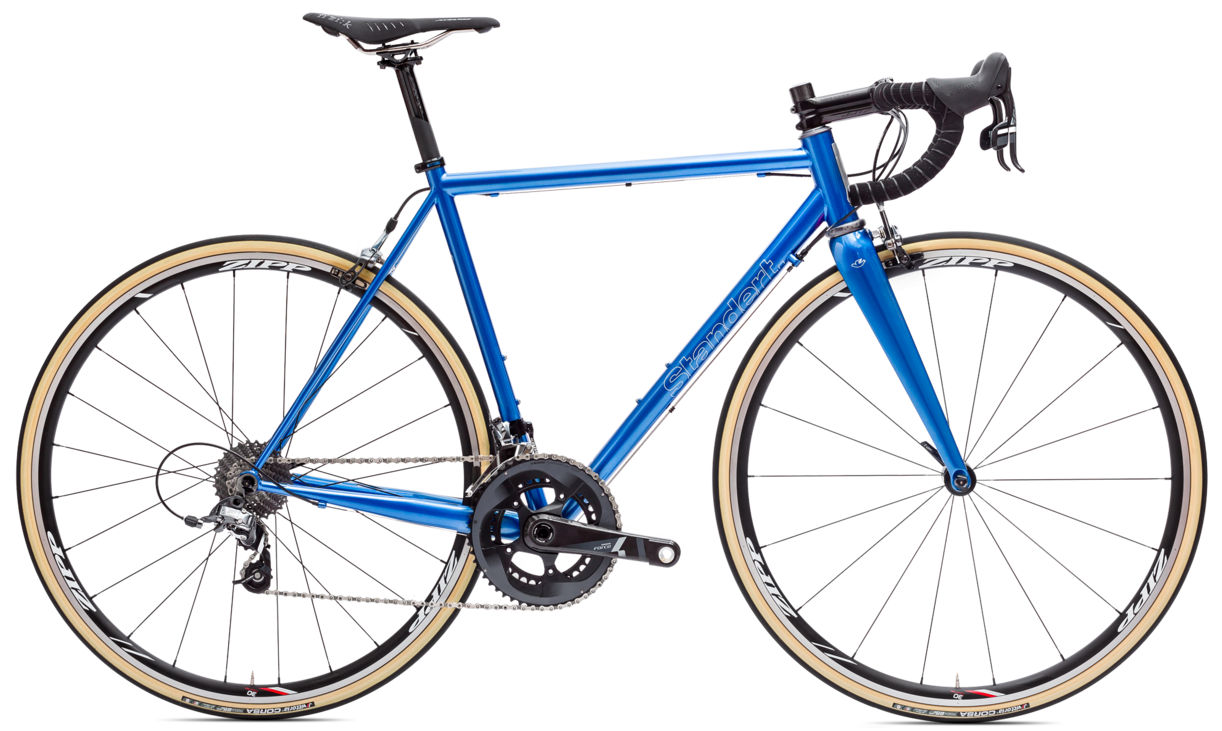

2019 Standert Triebwerk Mach 3 geometry
Full frame geometry for the 2019 Standert Triebwerk Mach 3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 527 | 378 | 74 | 72 | 118 | 530 | 500 | 755 | 70 | 410 | 978 |
| S | 540 | 380 | 73.5 | 73 | 129 | 540 | 535 | 778 | 70 | 410 | 974 |
| M | 565 | 388 | 73.5 | 73.5 | 153 | 555 | 560 | 802 | 70 | 410 | 985 |
| L | 585 | 397 | 73.5 | 73.5 | 174 | 570 | 580 | 822 | 70 | 410 | 1000 |
| XL | 595 | 409 | 73.5 | 74 | 180 | 585 | 590 | 832 | 70 | 410 | 1010 |
All measurements in millimetres unless marked (°) for angles.
