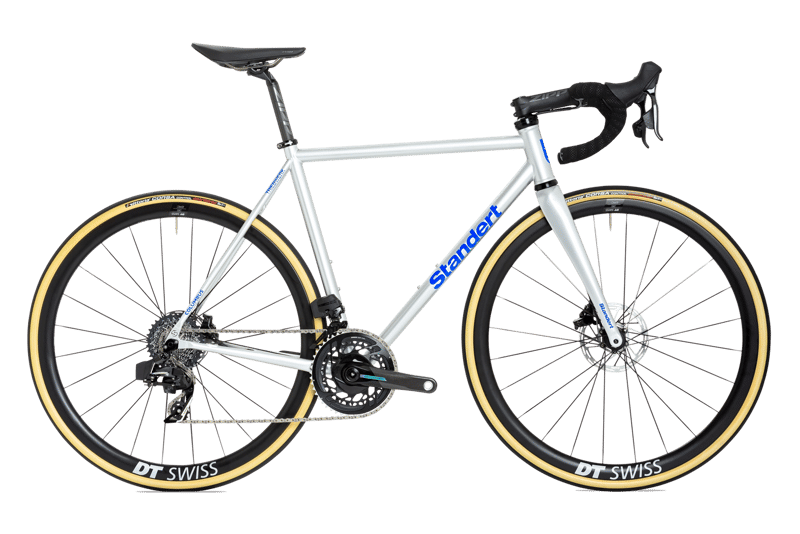

2023 Standert Triebwerk geometry
Full frame geometry for the 2023 Standert Triebwerk, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 48 | 509 | 380 | 76.5 | 71.3 | 97 | 502 | 737 | 405 | 976 |
| 50 | 519 | 385 | 76 | 72 | 105 | 514 | 747 | 405 | 977 |
| 52 | 529 | 389 | 75 | 72.5 | 113 | 530 | 763 | 408 | 983 |
| 54 | 545 | 393 | 74.5 | 73 | 128 | 544 | 782 | 410 | 989 |
| 56 | 560 | 401 | 74 | 73.5 | 142 | 560 | 797 | 410 | 997 |
| 58 | 575 | 406 | 74 | 73.5 | 158 | 570 | 811 | 412 | 1009 |
| 60 | 590 | 414 | 74 | 73.5 | 174 | 582 | 826 | 412 | 1021 |
All measurements in millimetres unless marked (°) for angles.
