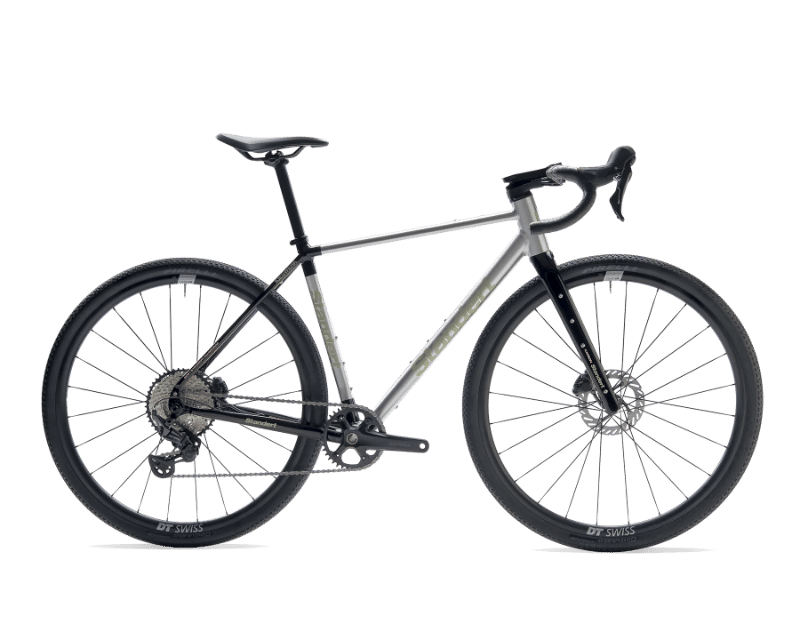

2026 Standert Kieswerk geometry
Full frame geometry for the 2026 Standert Kieswerk, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 526 | 376 | 75.5 | 70.5 | 100 | 512 | 460 | 750 | 430 | 1012 |
| 50 | 537 | 381 | 75 | 71 | 110 | 525 | 470 | 760 | 430 | 1017 |
| 52 | 552 | 388 | 74.5 | 71.3 | 125 | 541 | 485 | 774 | 430 | 1026 |
| 54 | 563 | 394 | 74 | 71.5 | 135 | 556 | 495 | 784 | 430 | 1034 |
| 56 | 577 | 399 | 73.5 | 71.5 | 150 | 570 | 510 | 798 | 430 | 1043 |
| 58 | 601 | 405 | 73.5 | 71.8 | 175 | 583 | 535 | 822 | 430 | 1054 |
| 60 | 621 | 415 | 73.5 | 72 | 195 | 599 | 555 | 842 | 430 | 1068 |
All measurements in millimetres unless marked (°) for angles.
