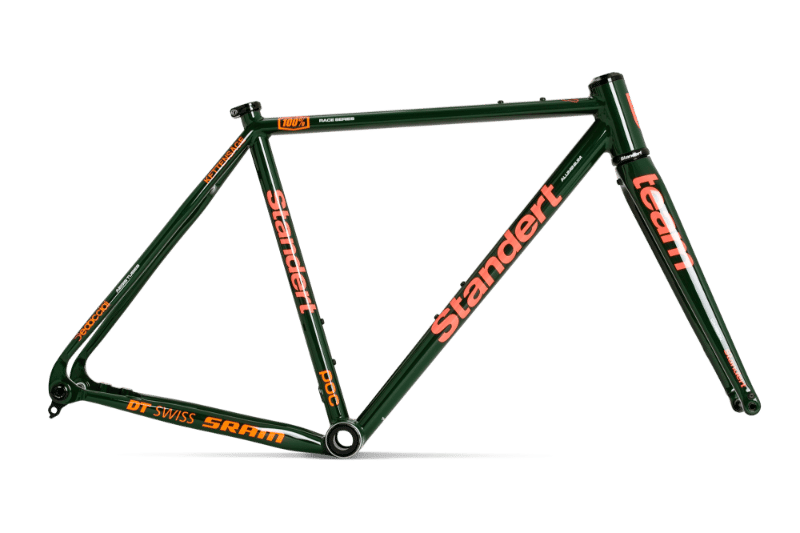

2026 Standert Kettensage geometry
Full frame geometry for the 2026 Standert Kettensage, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 534 | 379 | 76 | 71 | 90 | 515 | 490 | 764 | 425 | 1006 |
| 50 | 539 | 383 | 75.5 | 71 | 95 | 525 | 500 | 771 | 425 | 1011 |
| 52 | 545 | 387 | 75 | 71.5 | 100 | 535 | 510 | 779 | 425 | 1012 |
| 54 | 555 | 390 | 74 | 71.5 | 110 | 550 | 525 | 789 | 425 | 1018 |
| 56 | 566 | 397 | 73.5 | 72 | 120 | 565 | 540 | 799 | 427 | 1026 |
| 58 | 575 | 409 | 73.5 | 72 | 130 | 580 | 555 | 814 | 427 | 1041 |
| 60 | 590 | 414 | 73.5 | 72 | 145 | 590 | 570 | 828 | 427 | 1051 |
All measurements in millimetres unless marked (°) for angles.
