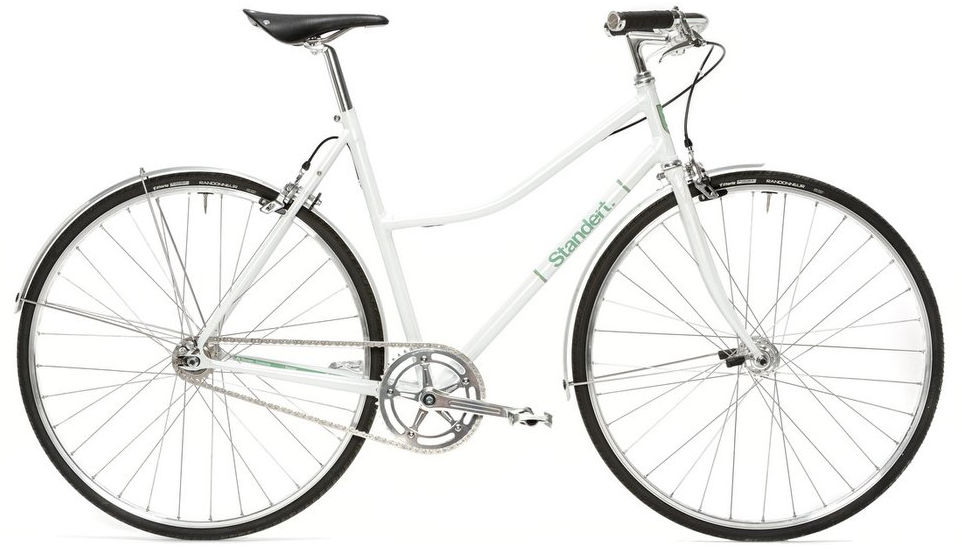

2016 Standert Frau geometry
Full frame geometry for the 2016 Standert Frau, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 544 | 378 | 74.5 | 71 | 125 | 530 | 810 | 68 |
| M | 564 | 395 | 74 | 72 | 145 | 560 | 842 | 68 |
| L | 569 | 398 | 73 | 73 | 175 | 580 | 861 | 68 |
All measurements in millimetres unless marked (°) for angles.
