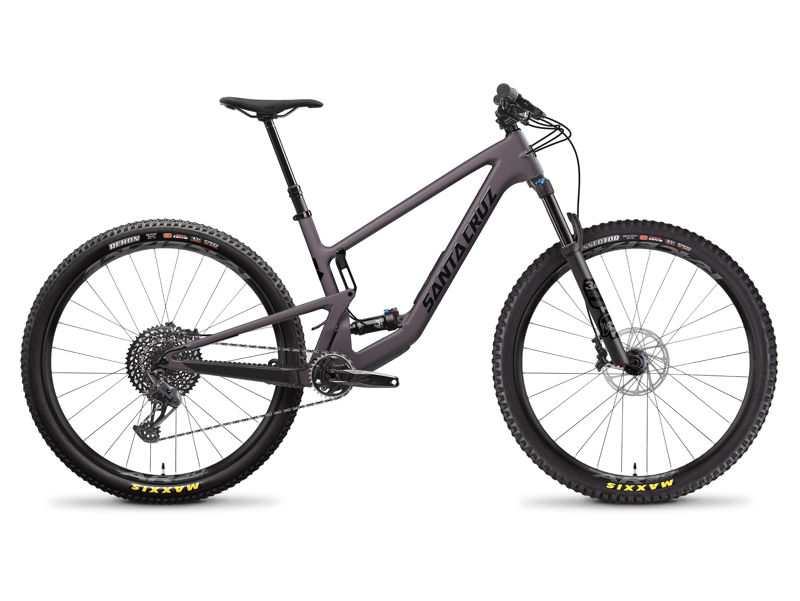

2023 Santa Cruz Tallboy geometry
Full frame geometry for the 2023 Santa Cruz Tallboy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 601 | 405 | 76 | 65.7 | 95 | 555 | 680 | 3841 | 708 | 1138 |
| S | 610 | 430 | 76 | 65.7 | 105 | 579 | 693 | 3841 | 737 | 1167 |
| M | 619 | 455 | 76.7 | 65.7 | 115 | 602 | 696 | 3841 | 766 | 1199 |
| L | 628 | 475 | 76.8 | 65.7 | 125 | 622 | 698 | 3841 | 790 | 1227 |
| XL | 646 | 495 | 77 | 65.7 | 145 | 644 | 698 | 3841 | 818 | 1257 |
| XXL | 656 | 520 | 77.1 | 65.7 | 155 | 671 | 701 | 3841 | 847 | 1290 |
All measurements in millimetres unless marked (°) for angles.
