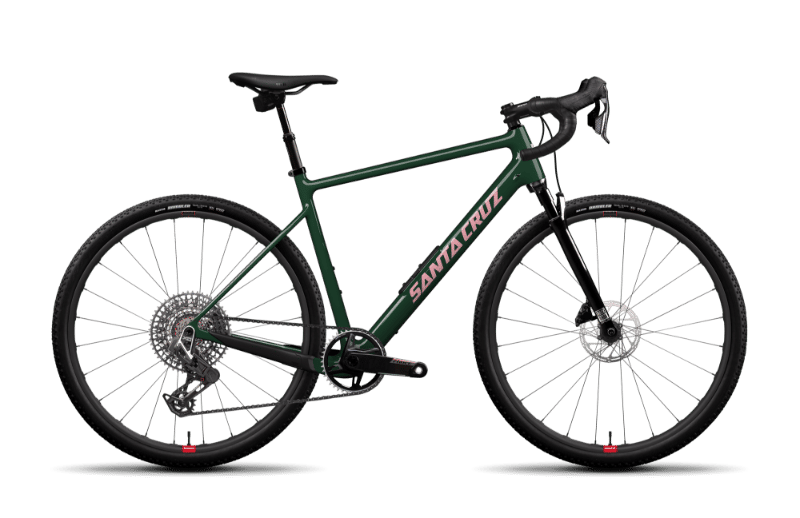

2026 Santa Cruz Stigmata geometry
Full frame geometry for the 2026 Santa Cruz Stigmata, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 550 | 375 | 74 | 69.5 | 90 | 533 | 450 | 78 | 605 | 423 | 1023 | 45 |
| S | 564 | 390 | 74 | 69.5 | 105 | 552 | 455 | 78 | 625 | 423 | 1043 | 45 |
| M | 576 | 405 | 74 | 69.5 | 120 | 570 | 485 | 76 | 645 | 423 | 1063 | 45 |
| L | 600 | 420 | 74 | 69.5 | 145 | 592 | 515 | 76 | 668 | 423 | 1087 | 45 |
| XL | 612 | 435 | 74 | 69.5 | 160 | 610 | 545 | 74 | 688 | 423 | 1108 | 45 |
| XXL | 631 | 450 | 74 | 69.5 | 180 | 631 | 575 | 74 | 710 | 423 | 1130 | 45 |
All measurements in millimetres unless marked (°) for angles.
