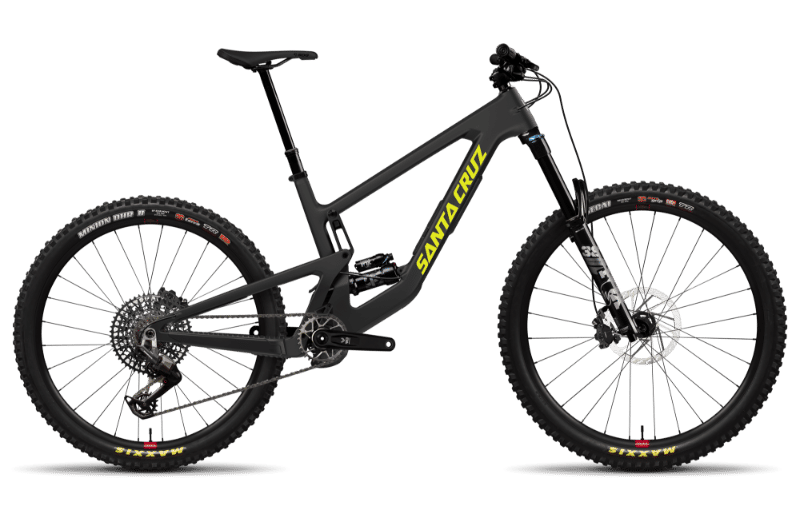

2026 Santa Cruz Nomad geometry
Full frame geometry for the 2026 Santa Cruz Nomad, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| — | 616 | 430 | 77.2 | 63.8 | 90 | 570 | 709 | 770 | 439 | 1209 |
| — | 625 | 455 | 77.4 | 63.8 | 100 | 594 | 716 | 799 | 440 | 1239 |
| — | 638 | 475 | 77.9 | 63.8 | 115 | 612 | 723 | 826 | 443 | 1269 |
| — | 656 | 495 | 77.8 | 63.8 | 135 | 637 | 722 | 855 | 446 | 1301 |
| — | 670 | 520 | 77.7 | 63.8 | 150 | 666 | 725 | 886 | 450 | 1336 |
All measurements in millimetres unless marked (°) for angles.
