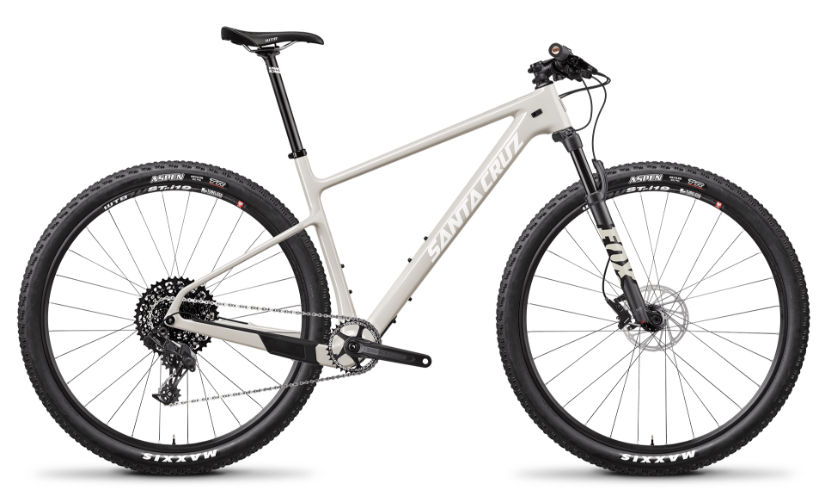

2018 Santa Cruz Highball geometry
Full frame geometry for the 2018 Santa Cruz Highball, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 596 | 405 | 73 | 69.5 | 90 | 587 | 405 | 708 | 56 | 662 | 430 | 1088 |
| M | 606 | 430 | 73 | 69.5 | 100 | 615 | 430 | 715 | 56 | 690 | 430 | 1116 |
| L | 615 | 450 | 73 | 69.5 | 110 | 638 | 470 | 740 | 56 | 714 | 430 | 1140 |
| XL | 634 | 480 | 73 | 69.5 | 130 | 674 | 530 | 756 | 56 | 751 | 430 | 1177 |
All measurements in millimetres unless marked (°) for angles.
