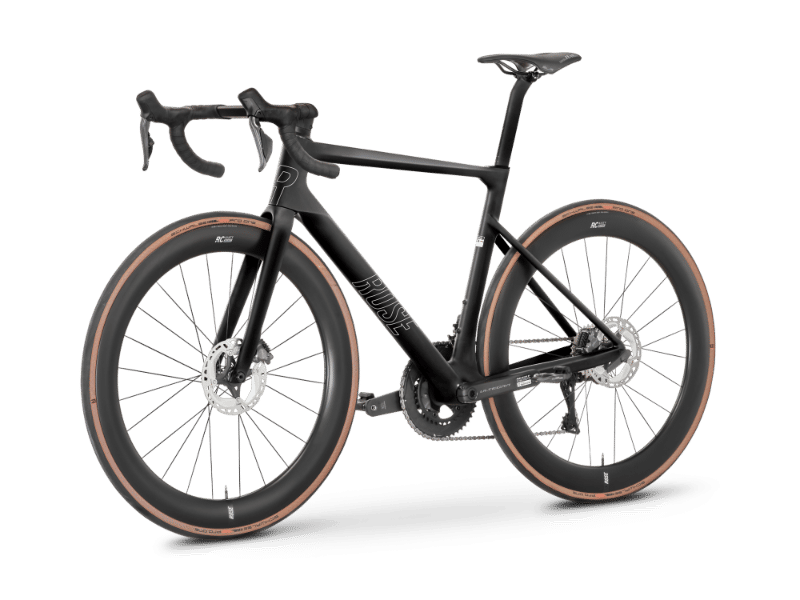

2026 Rose Xlite geometry
Full frame geometry for the 2026 Rose Xlite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 508 | 372 | 75.5 | 71 | 105 | 504 | 430 | 730 | 72 | 410 | 975 | 45 |
| 53 | 527 | 382 | 75 | 72 | 120 | 523 | 460 | 754 | 72 | 410 | 980 | 45 |
| 55 | 542 | 391 | 74.5 | 72.5 | 135 | 541 | 480 | 781 | 72 | 410 | 990 | 45 |
| 57 | 557 | 398 | 74 | 73 | 152 | 558 | 500 | 791 | 69 | 410 | 998 | 45 |
| 59 | 573 | 410 | 74 | 73.3 | 168 | 575 | 525 | 812 | 69 | 410 | 1013 | 45 |
| 62 | 597 | 422 | 74 | 73.5 | 192 | 593 | 565 | 844 | 69 | 410 | 1027 | 45 |
All measurements in millimetres unless marked (°) for angles.
