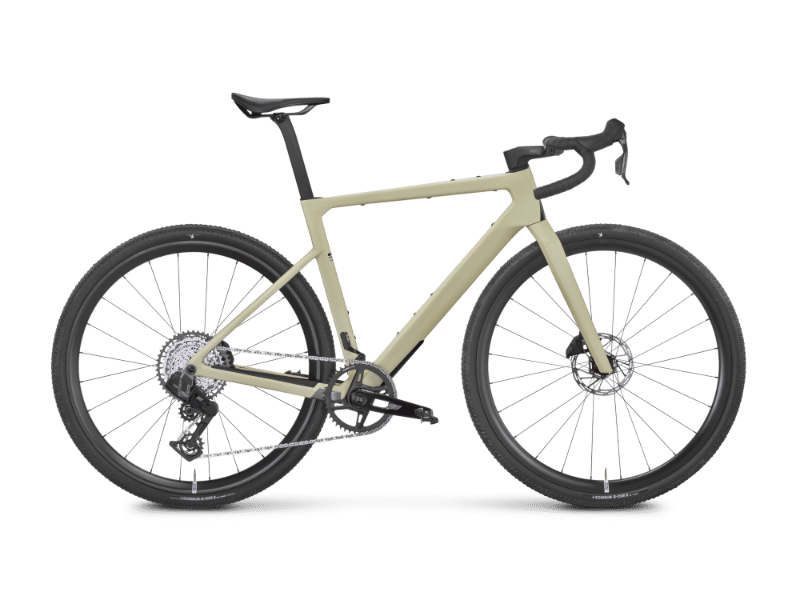

2026 Rose Backroad FF geometry
Full frame geometry for the 2026 Rose Backroad FF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 523 | 377 | 76.3 | 71.3 | 100 | 505 | 450 | 751 | 75 | 420 | 993 | 48 |
| S | 542 | 387 | 75.5 | 71.8 | 118 | 527 | 482 | 777 | 75 | 420 | 1005 | 48 |
| M | 558 | 396 | 75 | 72 | 134 | 546 | 505 | 796 | 75 | 420 | 1016 | 48 |
| M/L | 574 | 405 | 74.5 | 72.3 | 153 | 564 | 525 | 817 | 72 | 420 | 1030 | 48 |
| L | 592 | 418 | 74.5 | 72.5 | 171 | 582 | 550 | 837 | 72 | 420 | 1046 | 48 |
| XL | 616 | 432 | 74.5 | 72.5 | 195 | 603 | 585 | 868 | 72 | 420 | 1067 | 48 |
All measurements in millimetres unless marked (°) for angles.
