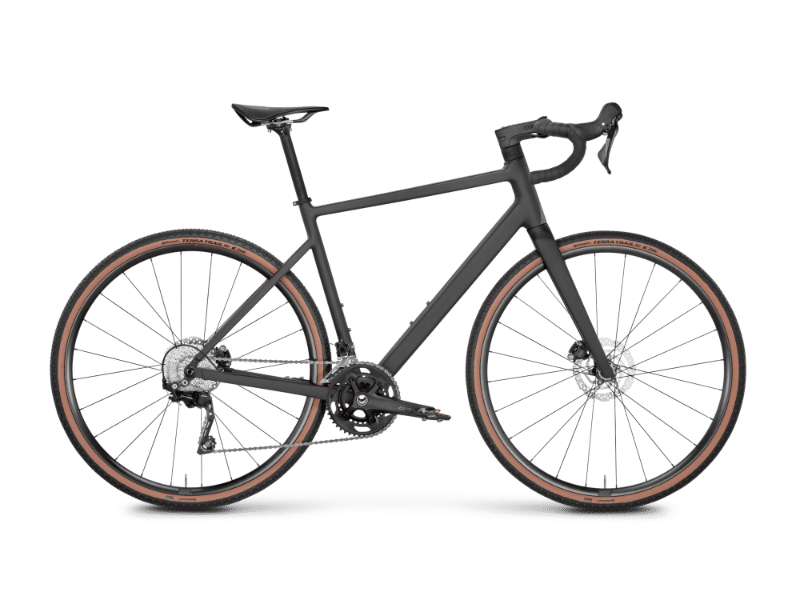

2026 Rose Blend Gravel geometry
Full frame geometry for the 2026 Rose Blend Gravel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 531.6 | 359.6 | 75 | 69.5 | 105 | 502 | 425 | 744.4 | 75 | 435 | 1008.9 | 47 |
| XS | 552.3 | 364.8 | 74.5 | 70 | 125 | 518 | 460 | 773.1 | 75 | 435 | 1017 | 47 |
| S | 576.8 | 372.6 | 74 | 71 | 150 | 538 | 490 | 803 | 72 | 435 | 1025.1 | 47 |
| M | 597.7 | 381 | 73.5 | 71.5 | 170 | 558 | 520 | 828 | 72 | 435 | 1035.4 | 47 |
| L | 612.9 | 393.5 | 73.5 | 71.5 | 186 | 575 | 550 | 850.2 | 72 | 435 | 1053 | 47 |
| XL | 628.9 | 402.7 | 73 | 71.5 | 205 | 595 | 580 | 874.6 | 70 | 435 | 1068.6 | 47 |
| XXL | 640.4 | 411.2 | 73 | 72 | 215 | 607 | 600 | 890 | 70 | 435 | 1075.3 | 47 |
All measurements in millimetres unless marked (°) for angles.
