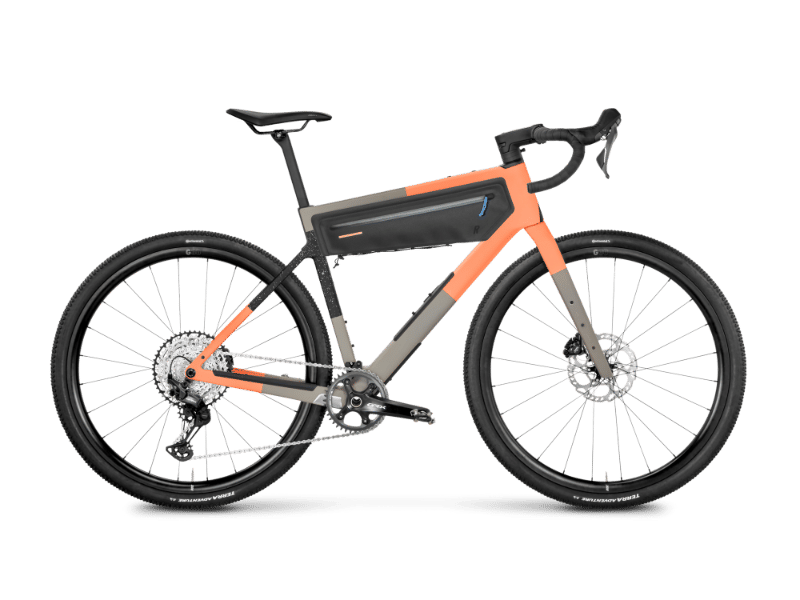

2026 Rose Backroad Carbon geometry
Full frame geometry for the 2026 Rose Backroad Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 544.7 | 384.4 | 75.5 | 70.5 | 102 | 525 | 462 | 772 | 78 | 425 | 1018.4 | 48 | 76 |
| S | 565.5 | 388.4 | 74.5 | 71 | 122 | 545 | 481 | 792 | 78 | 425 | 1024.8 | 48 | 73 |
| M | 580.6 | 396.4 | 74.3 | 71.3 | 137 | 560 | 501 | 809 | 78 | 425 | 1035.5 | 48 | 71 |
| M/L | 599.6 | 403.2 | 74 | 71.3 | 157 | 575 | 511 | 823 | 78 | 425 | 1048.7 | 48 | 71 |
| L | 610.5 | 412.3 | 73.8 | 71.5 | 167 | 590 | 531 | 837 | 78 | 430 | 1063.8 | 48 | 69 |
| XL | 624.3 | 430.2 | 73.5 | 71.5 | 182 | 615 | 556 | 856 | 78 | 430 | 1086.5 | 48 | 69 |
All measurements in millimetres unless marked (°) for angles.
