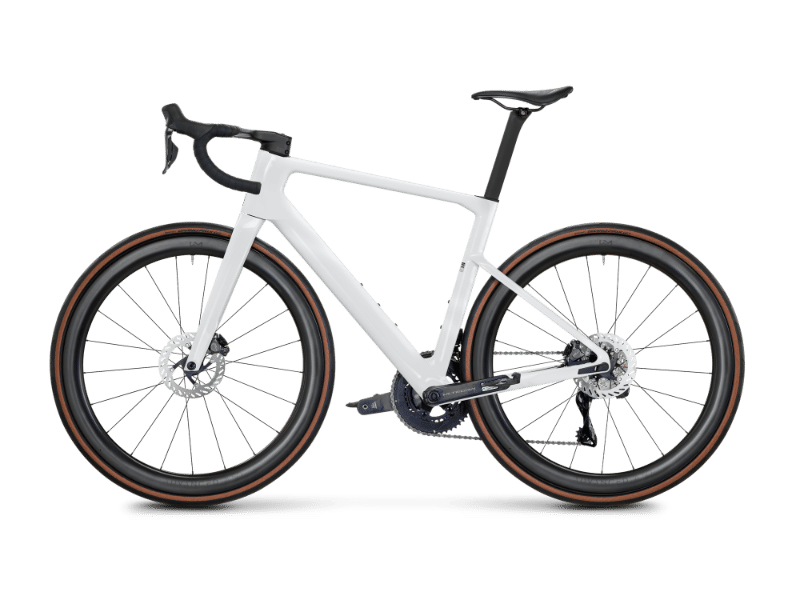

2026 Rose Shave geometry
Full frame geometry for the 2026 Rose Shave, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 544 | 360 | 75 | 71 | 123 | 505 | 435 | 748 | 73 | 412 | 975 | 45 | 72 |
| S | 562 | 370 | 74.5 | 72 | 138 | 525 | 470 | 774 | 73 | 412 | 982 | 45 | 66 |
| M | 584 | 378 | 74 | 73 | 157 | 545 | 492 | 796 | 73 | 414 | 989 | 45 | 58 |
| M/L | 602 | 388 | 73.5 | 73.3 | 175 | 566 | 512 | 815 | 73 | 414 | 1002 | 45 | 56 |
| L | 622 | 398 | 73.5 | 73.3 | 196 | 582 | 537 | 837 | 73 | 416 | 1020 | 45 | 58 |
| XL | 648 | 410 | 73.5 | 73.3 | 223 | 602 | 575 | 867 | 73 | 416 | 1039 | 45 | 58 |
All measurements in millimetres unless marked (°) for angles.
