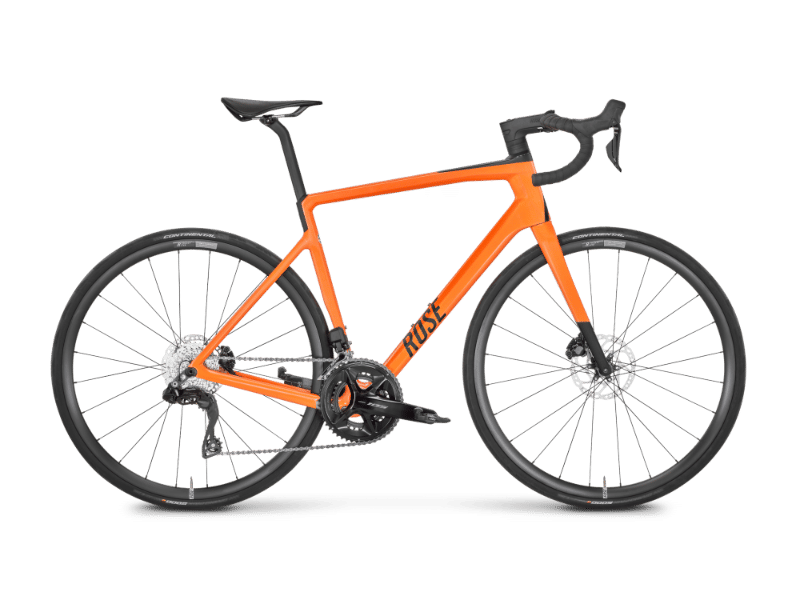

2026 Rose Reveal geometry
Full frame geometry for the 2026 Rose Reveal, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 536 | 368 | 75 | 71.5 | 120 | 512 | 450 | 750 | 75 | 578 | 410 | 976 | 46 |
| 53 | 558 | 375 | 74.5 | 72 | 142 | 530 | 475 | 773 | 75 | 585 | 410 | 984 | 46 |
| 55 | 572 | 381 | 74.3 | 72.5 | 154 | 542 | 495 | 790 | 75 | 590 | 412 | 991 | 46 |
| 57 | 589 | 385 | 74 | 73 | 170 | 554 | 515 | 808 | 75 | 595 | 412 | 995 | 46 |
| 59 | 605 | 389 | 73.5 | 73 | 190 | 568 | 537 | 830 | 72 | 604 | 415 | 1008 | 46 |
| 61 | 622 | 400 | 73 | 73 | 208 | 590 | 566 | 852 | 72 | 620 | 417 | 1027 | 46 |
| 64 | 643 | 412 | 72.5 | 73 | 230 | 615 | 600 | 879 | 72 | 639 | 420 | 1049 | 46 |
All measurements in millimetres unless marked (°) for angles.
