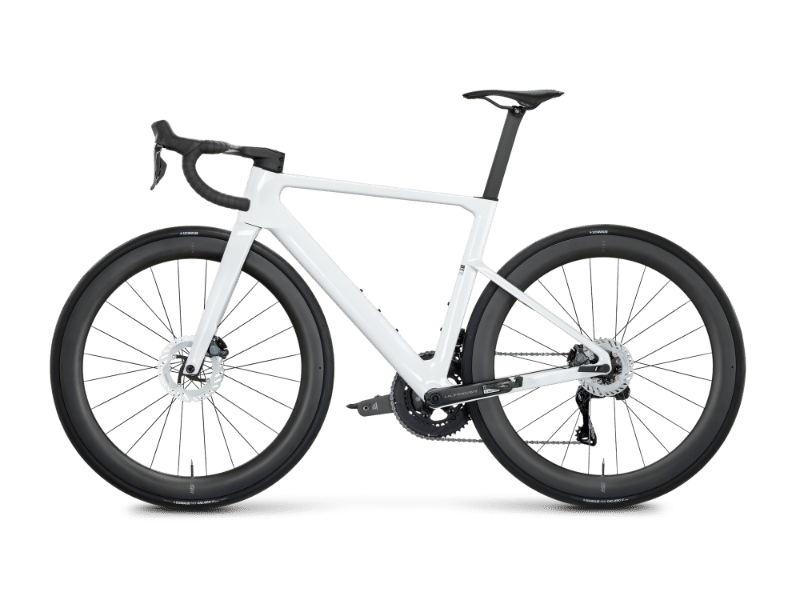

2026 Rose Shave FF geometry
Full frame geometry for the 2026 Rose Shave FF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 375 | 75.5 | 71.5 | 110 | 508 | 435 | 735 | 72 | 410 | 969 | 44 | 66 |
| S | 532 | 385 | 75 | 73 | 120 | 527 | 470 | 762 | 72 | 410 | 975 | 44 | 60 |
| M | 547 | 392 | 74.5 | 73.3 | 135 | 544 | 492 | 780 | 72 | 410 | 985 | 44 | 58 |
| M/L | 567 | 400 | 74 | 73.3 | 155 | 562 | 512 | 799 | 72 | 410 | 998 | 44 | 58 |
| L | 591 | 412 | 73.8 | 73.5 | 180 | 584 | 537 | 823 | 72 | 410 | 1015 | 44 | 57 |
| XL | 616 | 430 | 73.5 | 73.8 | 205 | 612 | 575 | 854 | 72 | 410 | 1038 | 44 | 55 |
All measurements in millimetres unless marked (°) for angles.
