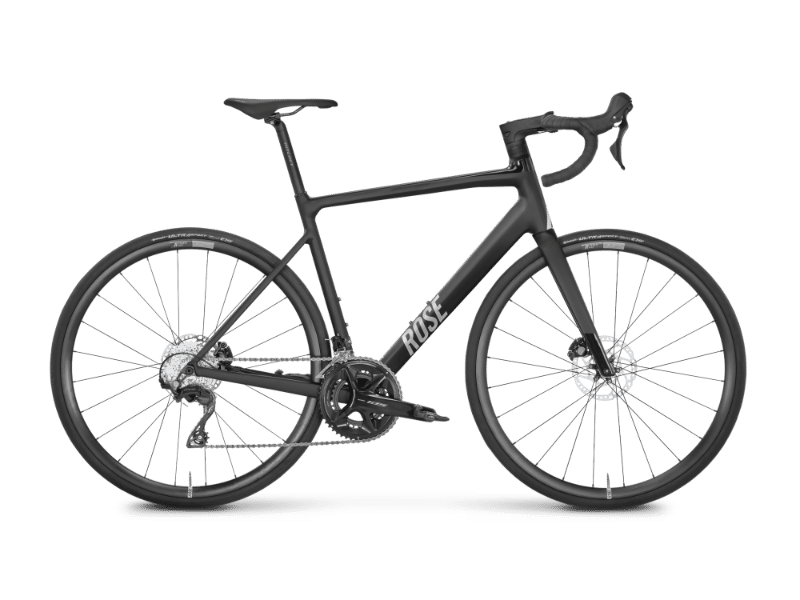

2026 Rose Reveal AL geometry
Full frame geometry for the 2026 Rose Reveal AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 493 | 365 | 75 | 70.5 | 120 | 497 | 420 | 698 | 70 | 566 | 415 | 968 | 46 |
| 48 | 512 | 371 | 75 | 71 | 133 | 508 | 445 | 720 | 59 | 578 | 409 | 989 | 46 |
| 51 | 533 | 373 | 74.5 | 71.5 | 140 | 521 | 475 | 758 | 73 | 580.5 | 415 | 989.3 | 46 |
| 53 | 548 | 378.5 | 74.3 | 72 | 147 | 533 | 495 | 775 | 73 | 595.5 | 415 | 989.5 | 46 |
| 55 | 563 | 383.5 | 74 | 72 | 163 | 545 | 505 | 793 | 73 | 601.5 | 415 | 999.5 | 46 |
| 57 | 581 | 388.5 | 73.8 | 72.5 | 180 | 558 | 515 | 811 | 73 | 601.5 | 415 | 1005.5 | 46 |
| 59 | 591.5 | 397 | 73.5 | 72.8 | 193 | 572 | 535 | 829 | 70 | 611 | 415 | 1016 | 46 |
| 61 | 608.5 | 405 | 73.3 | 73 | 210 | 588 | 560 | 847 | 70 | 621.5 | 419 | 1031 | 46 |
| 63 | 627 | 415.5 | 73 | 73.3 | 228 | 606 | 580 | 829 | 70 | 634 | 419 | 1043 | 46 |
| 65 | 644 | 426 | 72.8 | 73.5 | 245 | 626 | 605 | 865 | 70 | 647.5 | 425 | 1063 | 46 |
All measurements in millimetres unless marked (°) for angles.
