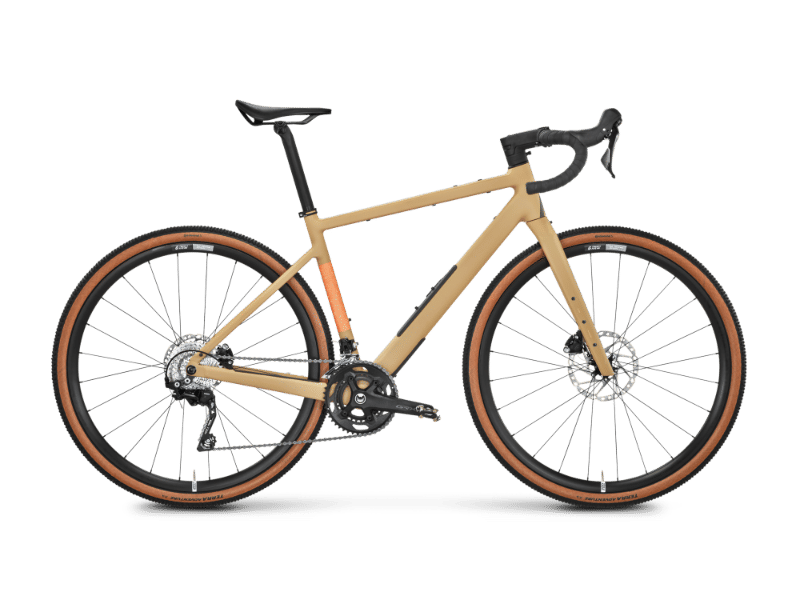

2026 Rose Backroad AL geometry
Full frame geometry for the 2026 Rose Backroad AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 540.8 | 365.1 | 75 | 70 | 100 | 510 | 440 | 763 | 78 | 430 | 1007.5 | 48 | 81.5 |
| XS | 552.2 | 374.5 | 74.8 | 70.5 | 110 | 525 | 460 | 779 | 78 | 430 | 1016.2 | 48 | 78.2 |
| S | 568.2 | 387.4 | 74.5 | 71 | 125 | 545 | 480 | 796 | 78 | 430 | 1029.9 | 48 | 74.7 |
| M | 583.4 | 395.5 | 74.3 | 71.3 | 140 | 560 | 490 | 808 | 78 | 430 | 1040.6 | 48 | 73 |
| M/L | 602.3 | 402.3 | 74 | 71.3 | 160 | 575 | 510 | 827 | 78 | 430 | 1053.8 | 48 | 73 |
| L | 612.8 | 411.4 | 73.8 | 71.5 | 170 | 590 | 530 | 842 | 78 | 430 | 1063.8 | 48 | 71.3 |
| XL | 627 | 429.3 | 73.5 | 71.5 | 185 | 615 | 555 | 861 | 78 | 430 | 1086.5 | 48 | 71.3 |
| XXL | 642.3 | 437.8 | 73.5 | 71.8 | 200 | 628 | 580 | 881 | 78 | 430 | 1097.2 | 48 | 69.6 |
All measurements in millimetres unless marked (°) for angles.
