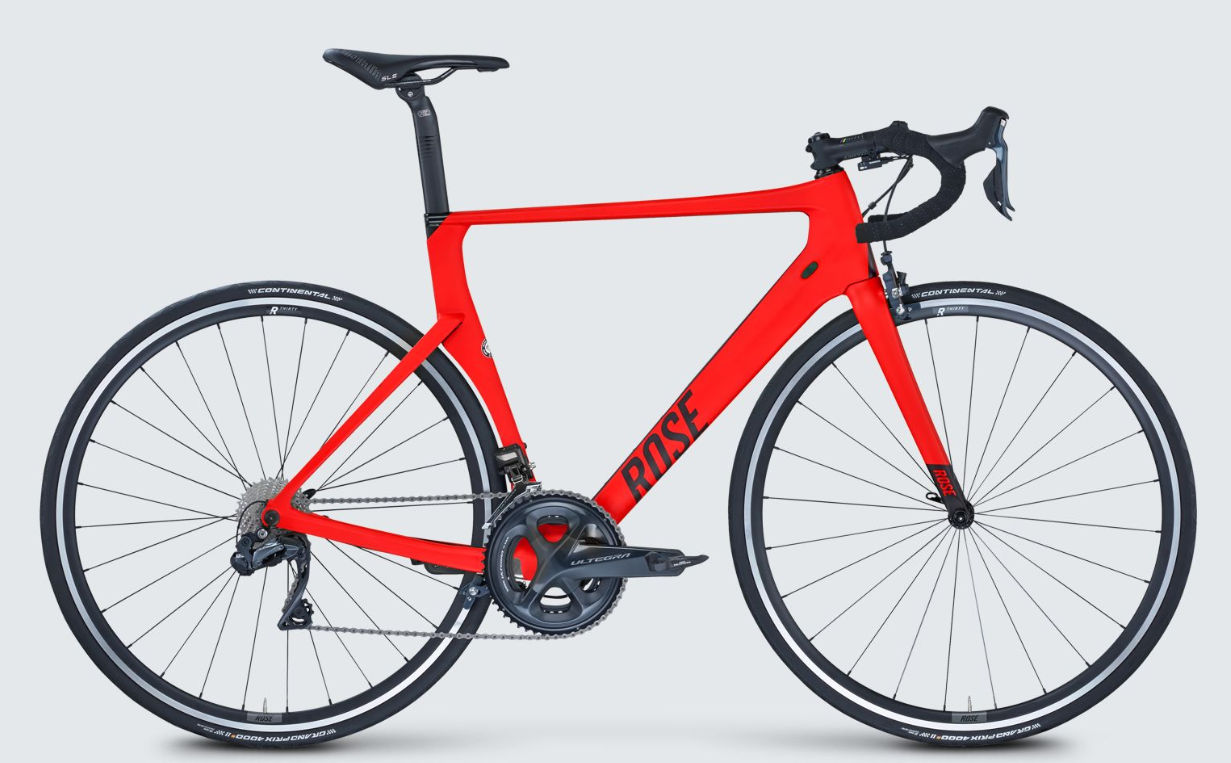

2019 Rose Xeon CW MK II geometry
Full frame geometry for the 2019 Rose Xeon CW MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 529 | 380 | 74.5 | 72 | 125 | 527 | 494 | 578 | 412 | 980 |
| 54 | 546 | 390 | 74.2 | 72.8 | 143 | 544 | 512 | 587 | 412 | 989 |
| 57 | 563 | 400 | 74 | 73.2 | 160 | 561 | 530 | 597 | 412 | 999 |
| 59 | 580 | 407 | 73.8 | 73.5 | 178 | 574 | 552 | 607 | 412 | 1009 |
| 62 | 602 | 415 | 73.5 | 73.5 | 200 | 593 | 578 | 621 | 412 | 1023 |
All measurements in millimetres unless marked (°) for angles.
