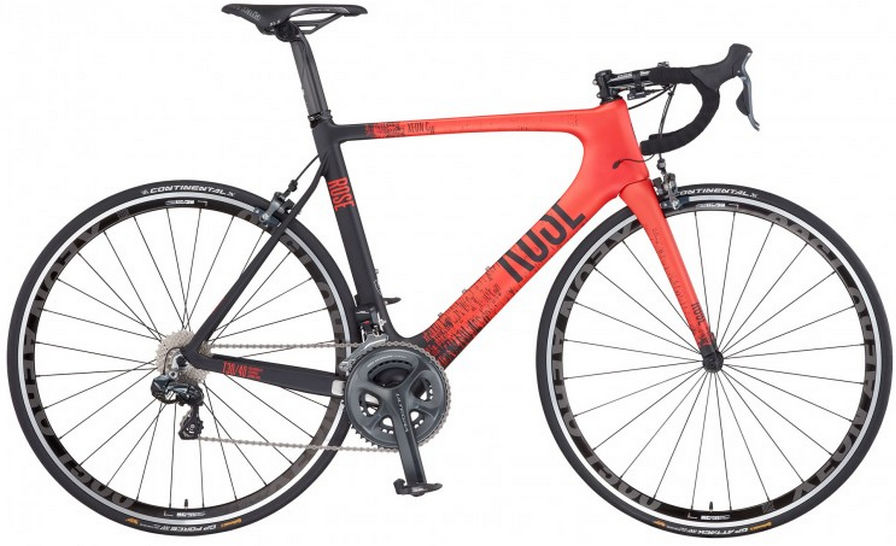

2014 Rose Xeon CW MK I geometry
Full frame geometry for the 2014 Rose Xeon CW MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 531 | 390 | 74.5 | 72.8 | 130 | 536 | 510 | 584 | 406 | 980 |
| S | 546 | 396 | 74 | 73.3 | 144 | 553 | 535 | 591 | 406 | 987 |
| M | 558 | 403 | 74 | 73.5 | 158 | 563 | 555 | 599 | 406 | 995 |
| L | 578 | 408 | 74 | 73.5 | 177 | 573 | 575 | 609 | 406 | 1005 |
| XL | 598 | 413 | 73.5 | 73.5 | 197 | 589 | 605 | 619 | 406 | 1015 |
All measurements in millimetres unless marked (°) for angles.
