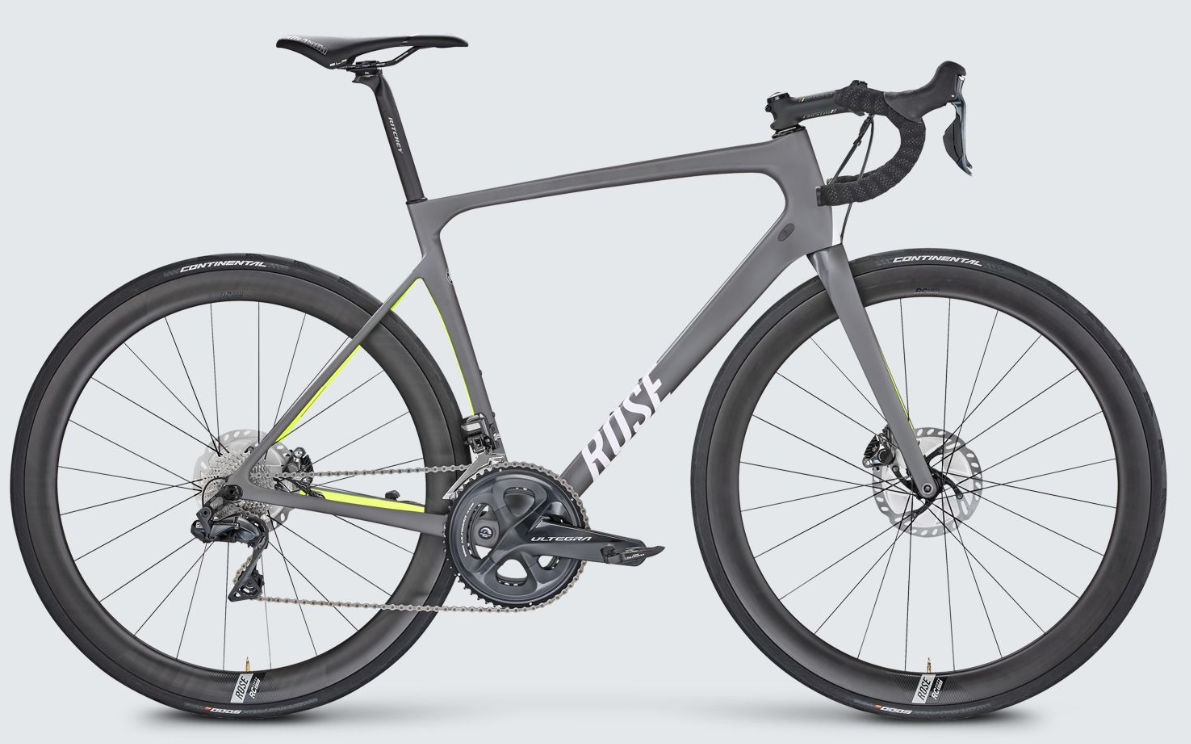

2019 Rose X-Lite Four Disc Aero geometry
Full frame geometry for the 2019 Rose X-Lite Four Disc Aero, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 520 | 373 | 74.5 | 71 | 125 | 517 | 430 | 738 | 69 | 578 | 410 | 978 | 43 |
| 53 | 538 | 380 | 74 | 72 | 140 | 535 | 460 | 761 | 69 | 582 | 410 | 982 | 43 |
| 55 | 555 | 386 | 73.5 | 72.8 | 155 | 550 | 480 | 781 | 69 | 586 | 410 | 986 | 43 |
| 57 | 572 | 394 | 73.5 | 73.5 | 170 | 563 | 500 | 800 | 69 | 592 | 410 | 992 | 43 |
| 59 | 592 | 402 | 73.5 | 73.5 | 190 | 577 | 525 | 821 | 69 | 605 | 410 | 1006 | 43 |
| 62 | 611 | 416 | 73.5 | 73.8 | 210 | 597 | 560 | 848 | 69 | 623 | 410 | 1023 | 43 |
All measurements in millimetres unless marked (°) for angles.
