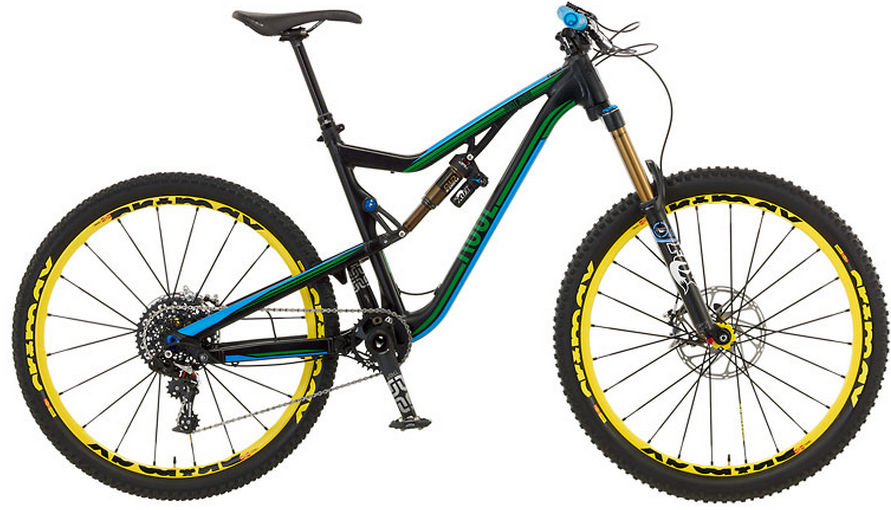

2015 Rose Uncle Jimbo 27.5 geometry
Full frame geometry for the 2015 Rose Uncle Jimbo 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 589 | 402 | 75 | 66 | 105 | 560 | 430 | 4 | 431 | 1140 |
| M | 594 | 421 | 75 | 66 | 110 | 580 | 455 | 4 | 431 | 1160 |
| L | 599 | 440 | 75 | 66 | 115 | 600 | 480 | 4 | 431 | 1181 |
| XL | 608 | 457 | 75 | 66 | 125 | 620 | 505 | 4 | 431 | 1203 |
All measurements in millimetres unless marked (°) for angles.
