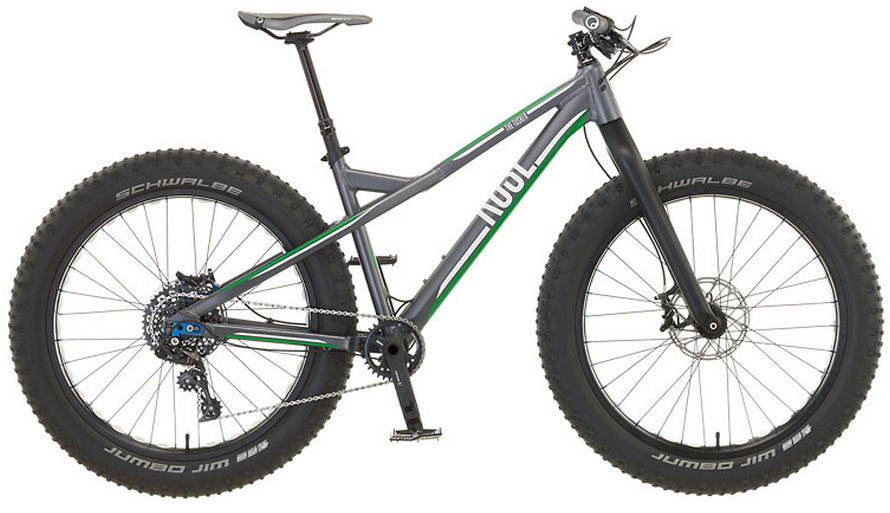

2015 Rose The Tusker geometry
Full frame geometry for the 2015 Rose The Tusker, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 590 | 414 | 73 | 69 | 125 | 595 | 430 | 50 | 444 | 1121 |
| L | 600 | 447 | 73 | 69 | 135 | 630 | 470 | 50 | 444 | 1156 |
All measurements in millimetres unless marked (°) for angles.
