2019 Rose · RW

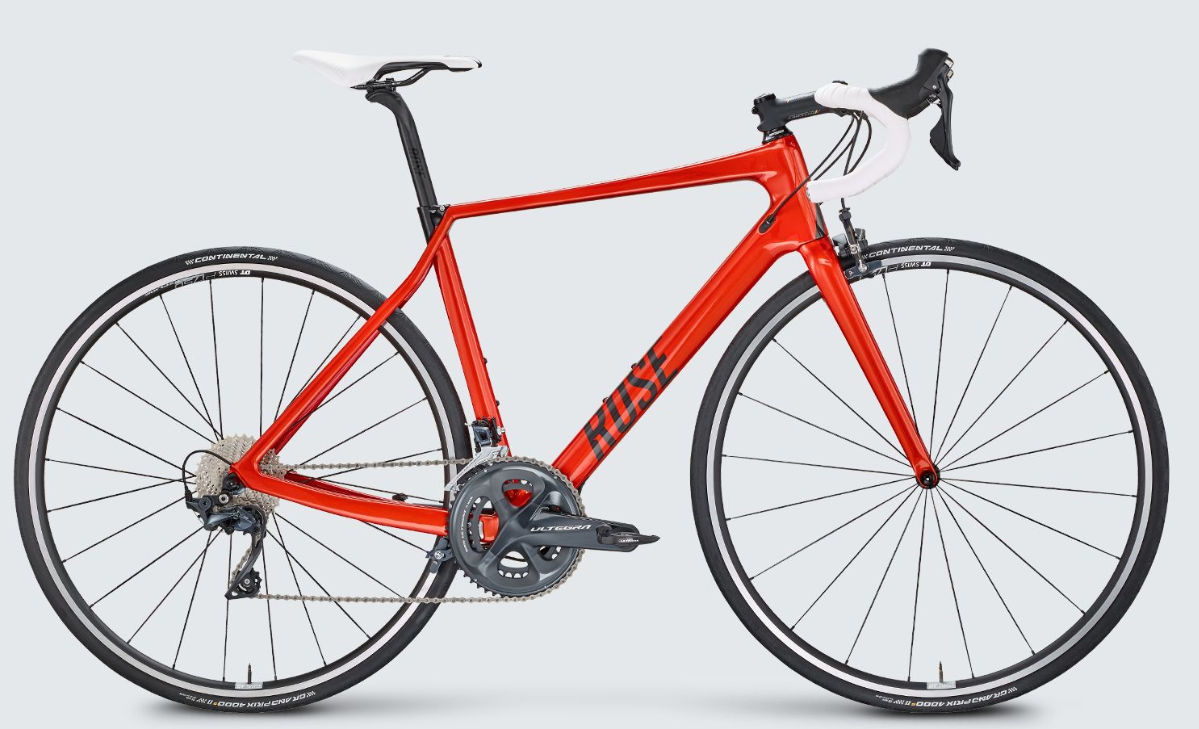

2019 Rose Team GF Lady geometry
Full frame geometry for the 2019 Rose Team GF Lady, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 534 | 373 | 75.2 | 71.8 | 135 | 514 | 450 | 583 | 410 | 981 |
| 53 | 552 | 379 | 75 | 72.2 | 153 | 527 | 475 | 585 | 410 | 985 |
| 55 | 566 | 383 | 74.5 | 72.5 | 168 | 540 | 495 | 591 | 410 | 991 |
| 57 | 583 | 387 | 74 | 73 | 185 | 555 | 515 | 596 | 410 | 998 |
All measurements in millimetres unless marked (°) for angles.
