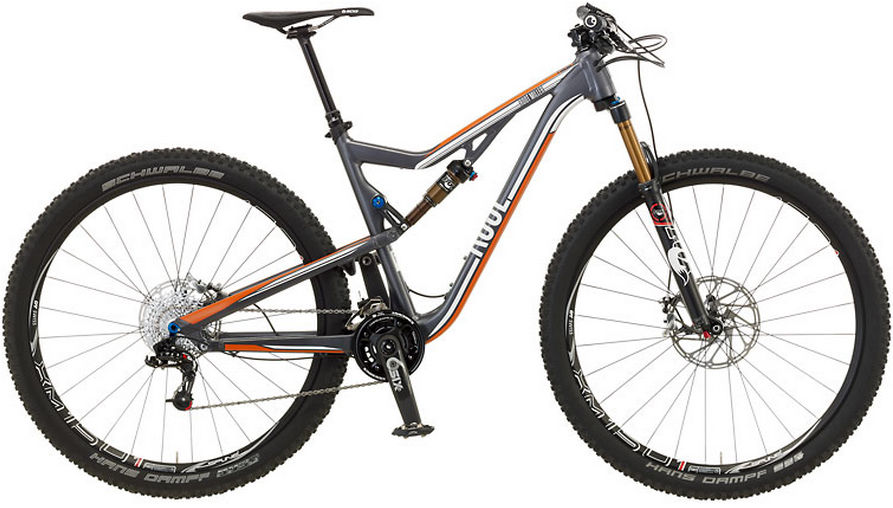

2015 Rose Root Miller 29 geometry
Full frame geometry for the 2015 Rose Root Miller 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 612 | 400 | 74.5 | 68.5 | 100 | 570 | 445 | 33 | 449 | 1127 |
| M | 617 | 419 | 74.5 | 68.5 | 105 | 590 | 470 | 33 | 449 | 1147 |
| L | 621 | 438 | 74.5 | 68.5 | 110 | 610 | 495 | 33 | 449 | 1168 |
| XL | 626 | 456 | 74.5 | 68.5 | 115 | 630 | 520 | 33 | 449 | 1188 |
All measurements in millimetres unless marked (°) for angles.
