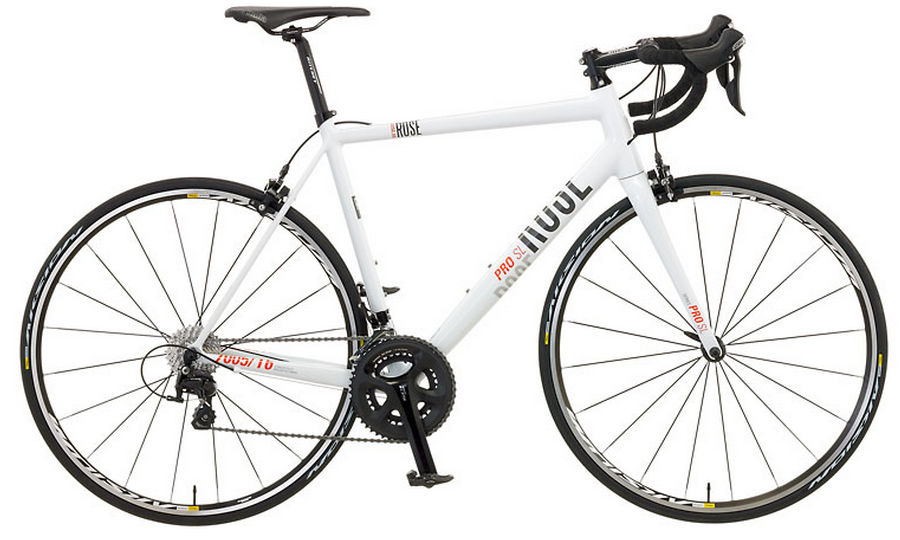

2014 Rose Pro SL MK I geometry
Full frame geometry for the 2014 Rose Pro SL MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 529 | 378 | 75 | 71 | 133 | 520 | 490 | 586 | 406 | 982 |
| 53 | 544 | 381 | 74.5 | 71.5 | 147 | 532 | 510 | 589 | 406 | 986 |
| 55 | 560 | 385 | 74.3 | 72 | 163 | 543 | 530 | 594 | 406 | 990 |
| 57 | 578 | 390 | 74 | 72.5 | 180 | 556 | 550 | 600 | 406 | 996 |
| 59 | 589 | 398 | 73.8 | 72.8 | 190 | 570 | 570 | 609 | 409 | 1008 |
| 61 | 609 | 405 | 73.5 | 73 | 210 | 586 | 590 | 619 | 409 | 1019 |
| 63 | 628 | 414 | 73.3 | 73 | 230 | 603 | 610 | 634 | 409 | 1034 |
| 65 | 637 | 424 | 73 | 73 | 240 | 620 | 630 | 648 | 409 | 1047 |
All measurements in millimetres unless marked (°) for angles.
