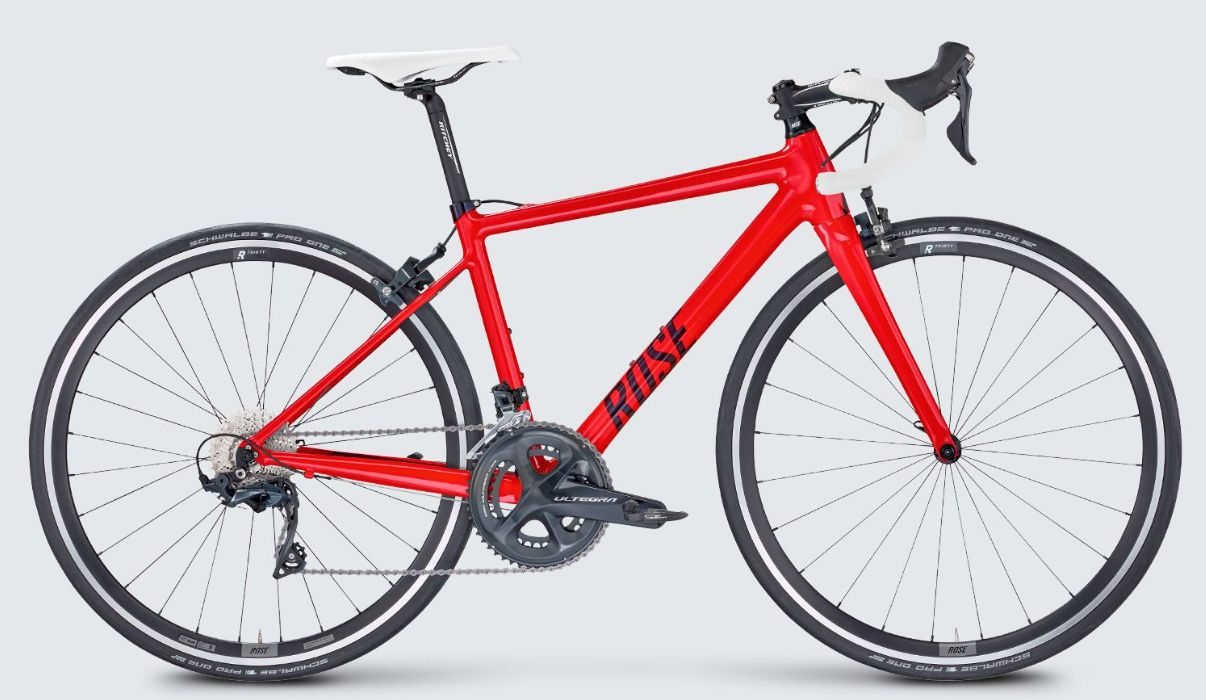

2019 Rose Pro SL Lady geometry
Full frame geometry for the 2019 Rose Pro SL Lady, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 53 | 546 | 379 | 74.2 | 71.5 | 147 | 533 | 495 | 758 | 69 | 588 | 406 | 984 | 43 |
| 55 | 561 | 384 | 74 | 72 | 163 | 545 | 515 | 777 | 69 | 593 | 409 | 992 | 43 |
| 57 | 578 | 389 | 73.8 | 72.5 | 180 | 558 | 535 | 796 | 69 | 599 | 409 | 998 | 43 |
All measurements in millimetres unless marked (°) for angles.
