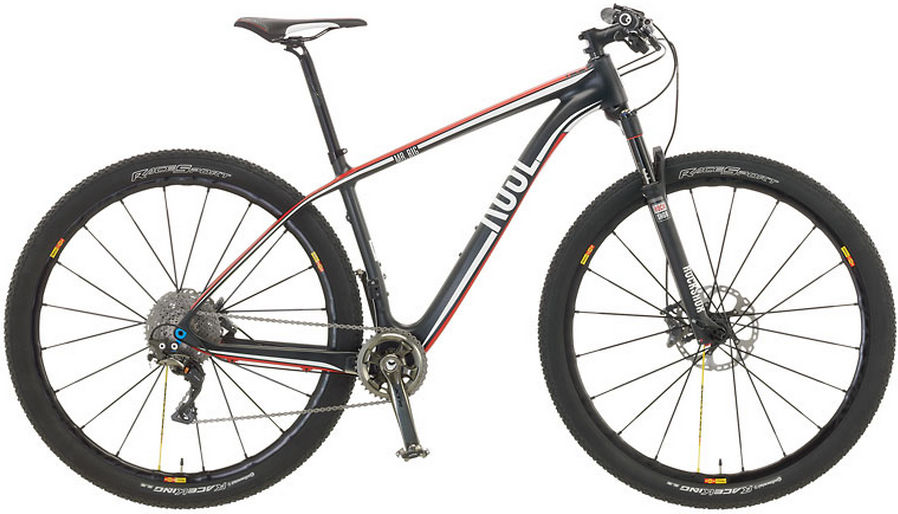

2015 Rose Mr Big 29 geometry
Full frame geometry for the 2015 Rose Mr Big 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 621 | 407 | 74 | 70.5 | 95 | 585 | 420 | 67 | 428 | 1080 |
| M | 626 | 426 | 74 | 70.5 | 100 | 605 | 450 | 67 | 428 | 1100 |
| L | 635 | 443 | 74 | 70.5 | 110 | 625 | 480 | 67 | 428 | 1120 |
| XL | 640 | 462 | 74 | 70.5 | 115 | 645 | 510 | 67 | 428 | 1141 |
All measurements in millimetres unless marked (°) for angles.
