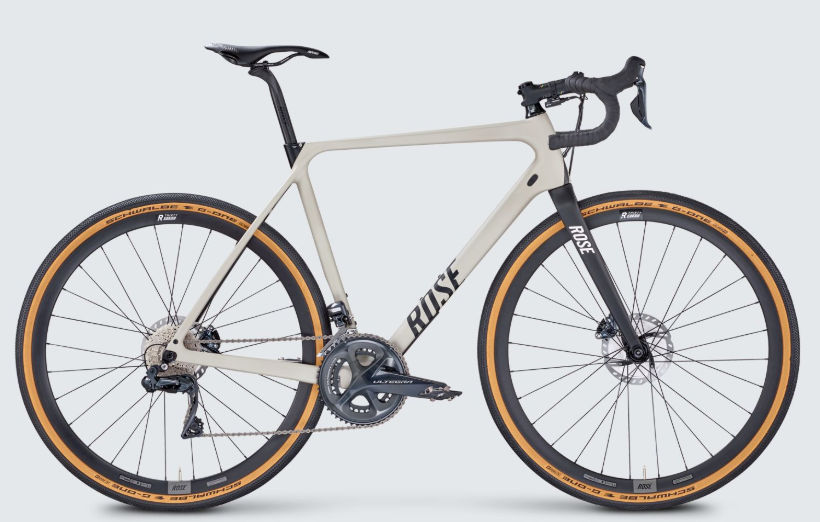

2018 Rose Backroad geometry
Full frame geometry for the 2018 Rose Backroad, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 541 | 370 | 74 | 71 | 130 | 525 | 483 | 790 | 60 | 591 | 425 | 1009 | 50 |
| 54 | 559 | 377 | 73.8 | 71.5 | 147 | 540 | 513 | 812 | 60 | 600 | 425 | 1017 | 50 |
| 57 | 577 | 384 | 73.5 | 72 | 164 | 555 | 543 | 837 | 60 | 607 | 425 | 1025 | 50 |
| 59 | 587 | 391 | 73.2 | 72 | 174 | 568 | 563 | 853 | 60 | 618 | 425 | 1035 | 50 |
| 61 | 599 | 398 | 73 | 72 | 188 | 582 | 593 | 874 | 60 | 629 | 425 | 1047 | 50 |
All measurements in millimetres unless marked (°) for angles.
