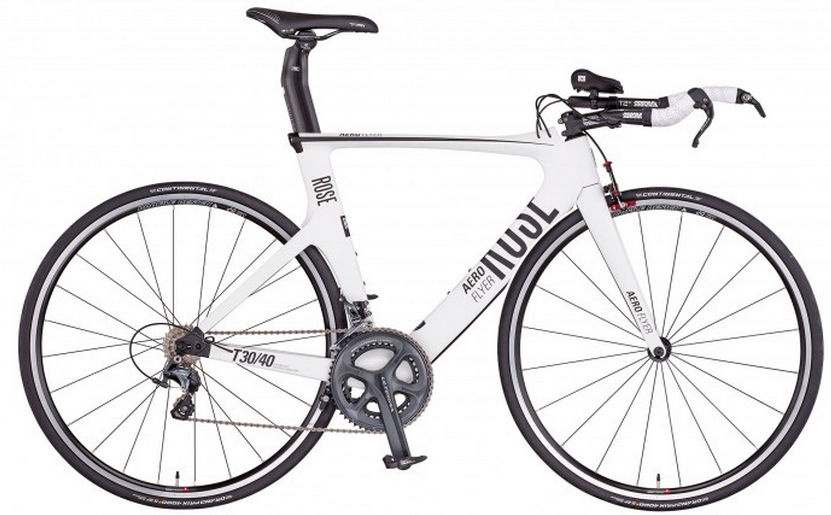

2014 Rose Aero Flyer geometry
Full frame geometry for the 2014 Rose Aero Flyer, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 497 | 398 | 77.5 | 73 | 92 | 510 | 525 | 578 | 410 | 979 |
| M | 506 | 406 | 77 | 73 | 102 | 530 | 545 | 588 | 410 | 989 |
| L | 516 | 428 | 77 | 73 | 112 | 550 | 570 | 614 | 410 | 1014 |
All measurements in millimetres unless marked (°) for angles.
