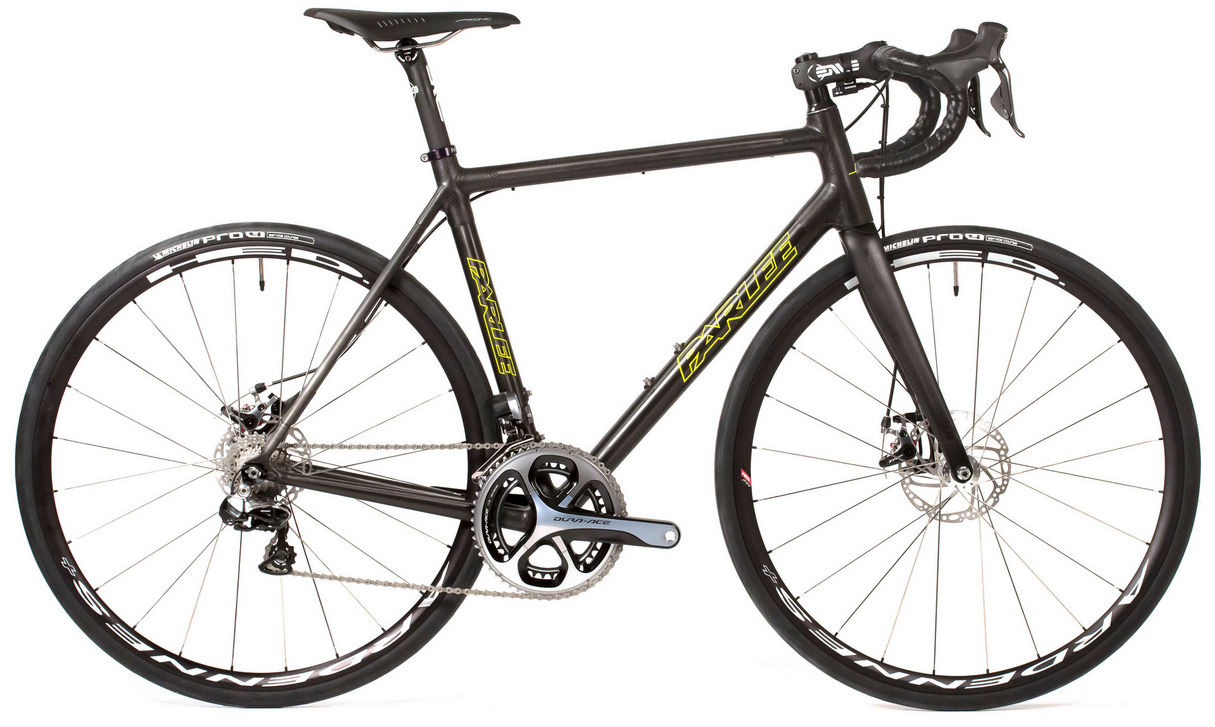

2015 Parlee Z-Zero Disc geometry

Name: 2015 Parlee Z-Zero Disc
Brand: Parlee

Full frame geometry for the 2015 Parlee Z-Zero Disc, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
XS	488	374	74.5	71.5	100	510	405	710	70	563	410	963	50
S	513	378	74	72.5	123	525	440	744	70	566	410	967	43
M	531	387	73.5	73	140	545	460	761	70	578	410	978	43
ML	550	392	73	73.5	158	560	480	778	70	583	410	983	43
L	565	402	73	73.5	174	575	500	796	70	598	410	998	43
XL	586	400	72.5	73.5	196	585	520	816	70	602	410	1002	43
XXL	611	403	72.5	73.5	225	595	530	839	70	612	415	1018	43
XXXL	635	410	72.5	73.5	275	610	580	879	70	627	415	1033	43

All measurements in millimetres unless marked (°) for angles.
