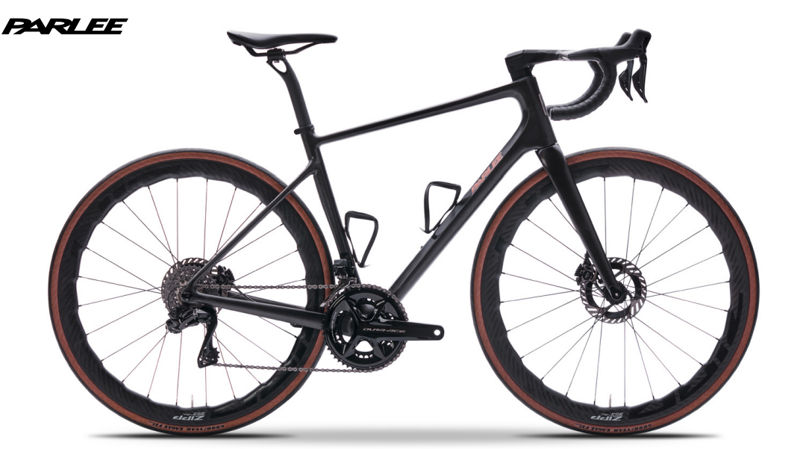

2024 Parlee Ouray geometry
Full frame geometry for the 2024 Parlee Ouray, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 536 | 363 | 75 | 70.8 | 125 | 507 | 415 | 693 | 80 | 584 | 420 | 991 | 53 |
| S | 558 | 366 | 74 | 71 | 147 | 526 | 455 | 728 | 80 | 592 | 420 | 999 | 53 |
| M | 579 | 375 | 73.5 | 71.5 | 164 | 547 | 492 | 759 | 80 | 595 | 420 | 1002 | 45 |
| L | 606 | 382 | 73 | 72 | 191 | 568 | 537 | 798 | 80 | 606 | 420 | 1013 | 45 |
| XL | 628 | 393 | 72.8 | 72.5 | 214 | 588 | 574 | 831 | 77 | 619 | 420 | 1027 | 45 |
All measurements in millimetres unless marked (°) for angles.
