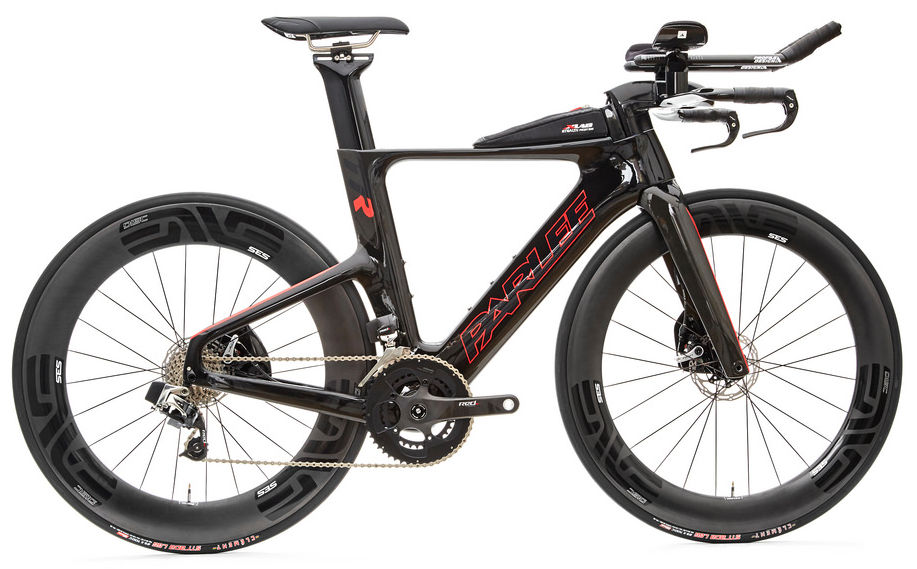

2017 Parlee TTiR Disc geometry
Full frame geometry for the 2017 Parlee TTiR Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 478 | 387 | 78.8 | 72.5 | 73 | 495 | 717 | 70 | 405 | 43 |
| M | 505 | 407 | 78.8 | 72.5 | 100 | 520 | 743 | 70 | 405 | 43 |
| ML | 530 | 428 | 78.8 | 72.5 | 127 | 545 | 766 | 70 | 405 | 43 |
| L | 555 | 449 | 78.8 | 72.5 | 153 | 570 | 790 | 70 | 405 | 43 |
All measurements in millimetres unless marked (°) for angles.
