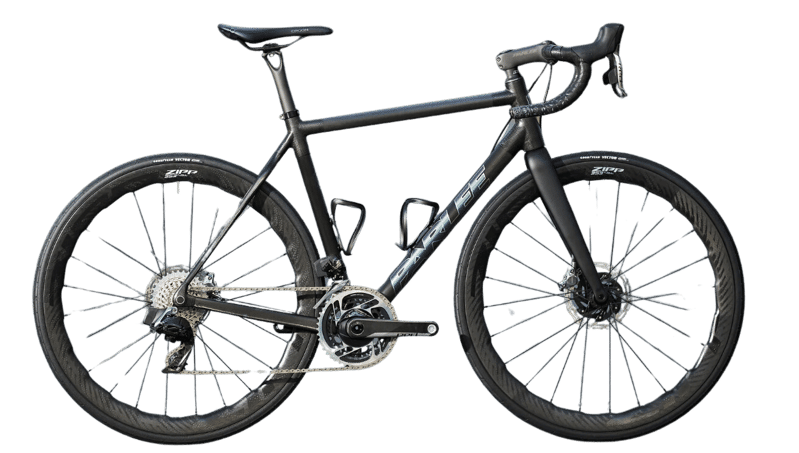

2024 Parlee Z-Zero RD geometry

Name: 2024 Parlee Z-Zero RD
Brand: Parlee

Full frame geometry for the 2024 Parlee Z-Zero RD, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
XS	499	369	74.5	71.5	100	510	700	70	570	410	970	50
XS Tall	523	363	74.5	71.5	125	510	722	70	570	410	970	50
S	528	373	74	72.5	123	525	728	70	567	410	967	43
M	546	383	73.5	73	140	545	764	70	578	410	997	43
S Tall	552	366	74	72.5	148	525	747	70	567	410	967	43
ML	565	388	73	73.5	158	560	783	70	583	410	983	43
M Tall	570	376	73.5	73	165	545	786	70	578	410	997	43
L	581	398	73	73.5	175	575	796	70	598	410	998	43
ML Tall	589	380	73	73.5	183	560	805	70	583	410	983	43
XL	601	396	73	73.5	196	585	816	70	602	410	1002	43
L (T)	604	391	73	73.5	199	575	816	70	598	410	998	43
XL (T)	625	389	72.5	73.5	221	585	837	70	602	410	1002	43
XXL	629	397	72.5	73.5	225	595	839	70	612	410	1017	43
XXL (T)	653	390	72.5	73.5	250	595	860	70	612	415	1017	43
XXXL	653	405	72.5	73.5	250	610	860	70	626	415	1031	43
XXXL (T)	677	397	72.5	73.5	275	610	880	70	626	415	1031	43

All measurements in millimetres unless marked (°) for angles.
