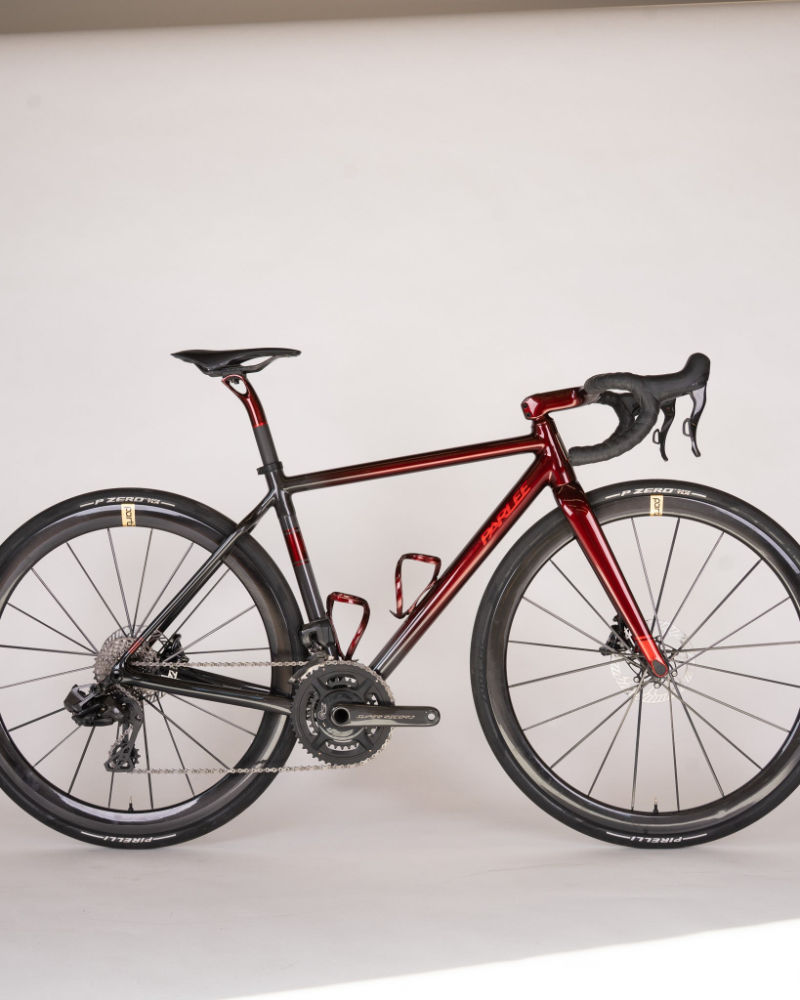

2026 Parlee Z-Zero GT geometry

Name: 2026 Parlee Z-Zero GT
Brand: Parlee

Full frame geometry for the 2026 Parlee Z-Zero GT, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
XS Race	513	375	75	70.5	102	515	725	80	583	422	992	47	72
S Race	535	378	74	71.5	121	533	745	80	585	422	994	47	66
XS Sport	535	363	75	70.3	127	510	744	80	582	427	996	47	74
M Race	552	388	73.5	72	137	552	766	80	596	422	1005	47	63
S Sport	558	366	74	71	148	528	767	80	586	427	1000	47	69
M Sport	572	372	73.5	71.5	161	543	787	80	592	427	1006	47	66
L Race	584	396	73	72.5	169	575	794	80	610	422	1019	47	59
XL Race	603	405	72.8	72.5	192	592	807	77	624	422	1035	47	59
L Sport	606	382	73	72	194	568	811	80	608	427	1022	47	63
XL Sport	627	388	72.8	72	219	583	840	77	621	427	1036	47	63
2L Race	635	407	72.8	73	220	603	846	77	630	422	1041	47	56
2XL Sport	650	393	72.8	72.3	243	595	865	77	630	427	1046	47	61

All measurements in millimetres unless marked (°) for angles.
