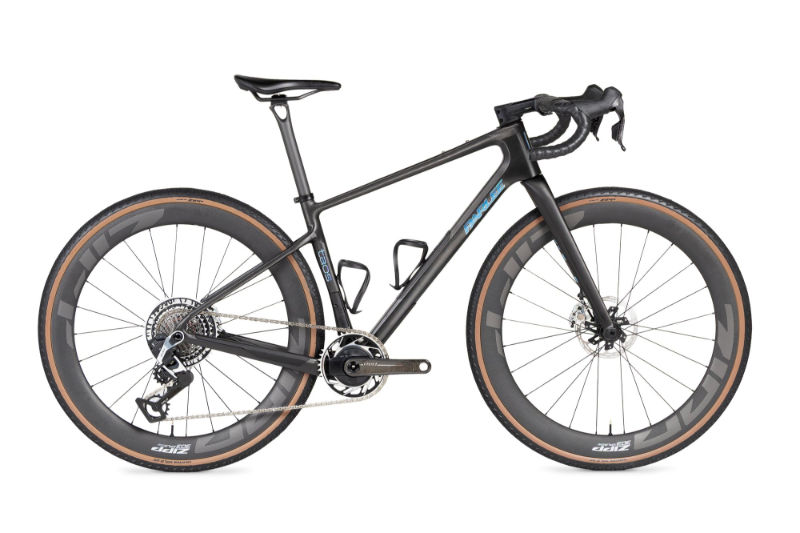

2026 Parlee Taos geometry
Full frame geometry for the 2026 Parlee Taos, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 540 | 362 | 75 | 68.8 | 90 | 508 | 700 | 82 | 600 | 430 | 1018 | 45 |
| XS | 564 | 375 | 74.5 | 69.3 | 115 | 532 | 735 | 80 | 617 | 430 | 1028 | 45 |
| S | 585 | 386 | 74.3 | 69.5 | 136 | 553 | 765 | 80 | 634 | 430 | 1052 | 45 |
| M | 605 | 402 | 74 | 69.5 | 158 | 577 | 791 | 80 | 651 | 430 | 1069 | 45 |
| L | 620 | 417 | 73.5 | 69.5 | 174 | 602 | 810 | 80 | 670 | 430 | 1090 | 45 |
| XL | 640 | 429 | 73.5 | 69.8 | 194 | 620 | 833 | 80 | 688 | 430 | 1106 | 45 |
All measurements in millimetres unless marked (°) for angles.
