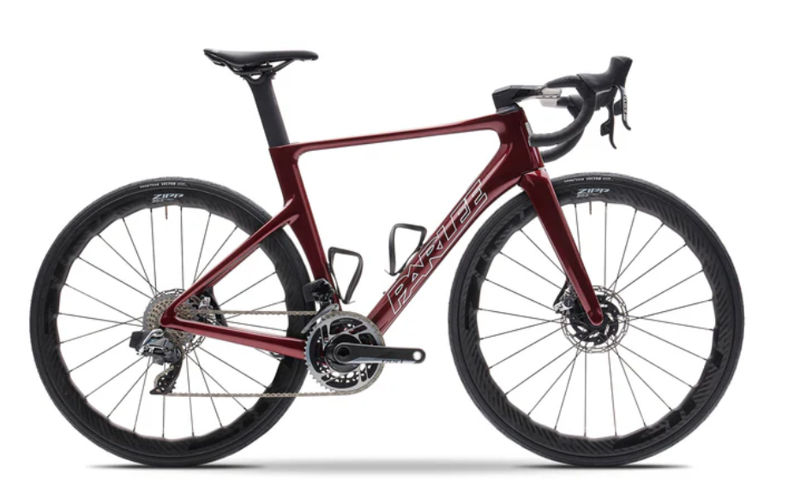

2024 Parlee RZ7 geometry
Full frame geometry for the 2024 Parlee RZ7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 505 | 367 | 74.3 | 71.3 | 100 | 510 | 737 | 75 | 565 | 415 | 968 | 45 | 70 |
| S | 527 | 375 | 73.7 | 72.3 | 120 | 530 | 752 | 75 | 572 | 415 | 975 | 45 | 63 |
| M | 552 | 386 | 73.5 | 73.2 | 143 | 550 | 769 | 75 | 583 | 415 | 986 | 45 | 57 |
| L | 576 | 397 | 73.3 | 73.3 | 167 | 570 | 802 | 75 | 599 | 415 | 1003 | 45 | 57 |
| XL | 600 | 409 | 73.3 | 73.3 | 193 | 590 | 823 | 75 | 619 | 415 | 1023 | 45 | 57 |
All measurements in millimetres unless marked (°) for angles.
