2024 Parlee Z-Zero XD geometry

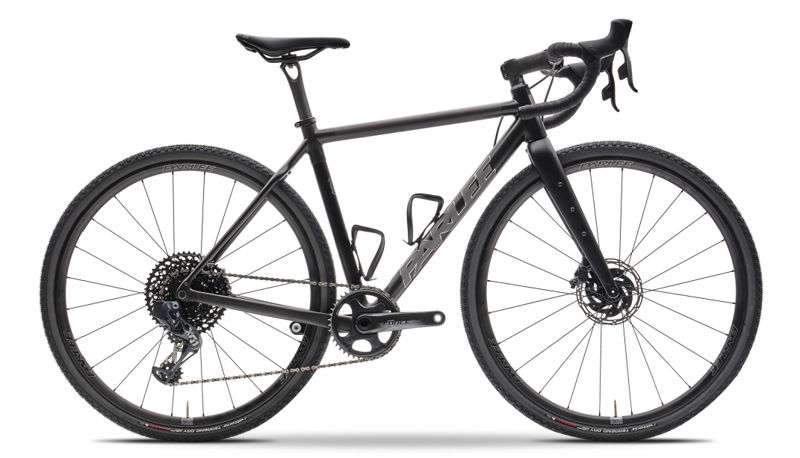

Name: 2024 Parlee Z-Zero XD
Brand: Parlee

Full frame geometry for the 2024 Parlee Z-Zero XD, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
S	522	378	74	71.5	100	525	754	70	579	430	999	47
XS	522	367	74.5	71.5	100	510	757	70	569	430	989	47
M	538	388	73.5	71.5	116	545	771	70	593	430	1013	47
S Tall	546	372	74	71.5	125	525	775	70	579	430	999	47
XS Tall	546	361	74.5	71.5	125	510	778	70	569	430	989	47
ML	556	392	73	71.5	135	560	789	70	603	430	1023	47
M Tall	562	382	73.5	71.5	141	545	792	70	593	430	1013	47
L	569	404	73	71.5	149	575	801	70	618	430	1039	47
ML Tall	578	387	73	71.5	158	560	807	70	603	430	1023	47
L (T)	595	396	73	71.5	176	575	827	70	618	430	1039	47
XL	596	400	72.5	72	176	585	828	70	621	430	1041	47
XL (T)	616	394	72.5	72	197	585	848	70	621	430	1041	47
XXL	616	404	72.5	72	197	595	847	70	631	430	1052	47
XXL (T)	638	397	72.5	72	220	595	868	70	631	430	1052	47
XXXL	638	412	72.5	72	220	610	866	70	646	430	1067	47
XXXL (T)	666	405	72.5	72	250	610	890	70	646	430	1067	47

All measurements in millimetres unless marked (°) for angles.
