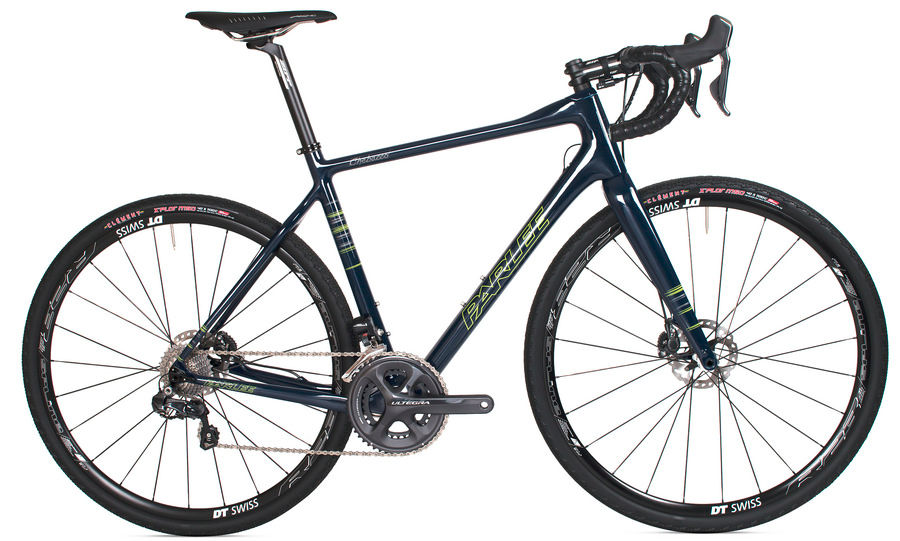

2017 Parlee Chebacco geometry
Full frame geometry for the 2017 Parlee Chebacco, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 546 | 368 | 74 | 71.5 | 124 | 525 | 455 | 752 | 70 | 580 | 430 | 1000 | 47 |
| M | 563 | 378 | 73.5 | 71.8 | 141 | 545 | 472 | 769 | 70 | 594 | 430 | 1014 | 47 |
| ML | 581 | 382 | 73 | 71.8 | 158 | 560 | 492 | 787 | 70 | 604 | 430 | 1024 | 47 |
| L | 594 | 392 | 73 | 71.8 | 174 | 575 | 506 | 802 | 70 | 619 | 430 | 1039 | 47 |
| XL | 617 | 400 | 72.5 | 72 | 197 | 595 | 520 | 823 | 70 | 631 | 430 | 1052 | 47 |
All measurements in millimetres unless marked (°) for angles.
