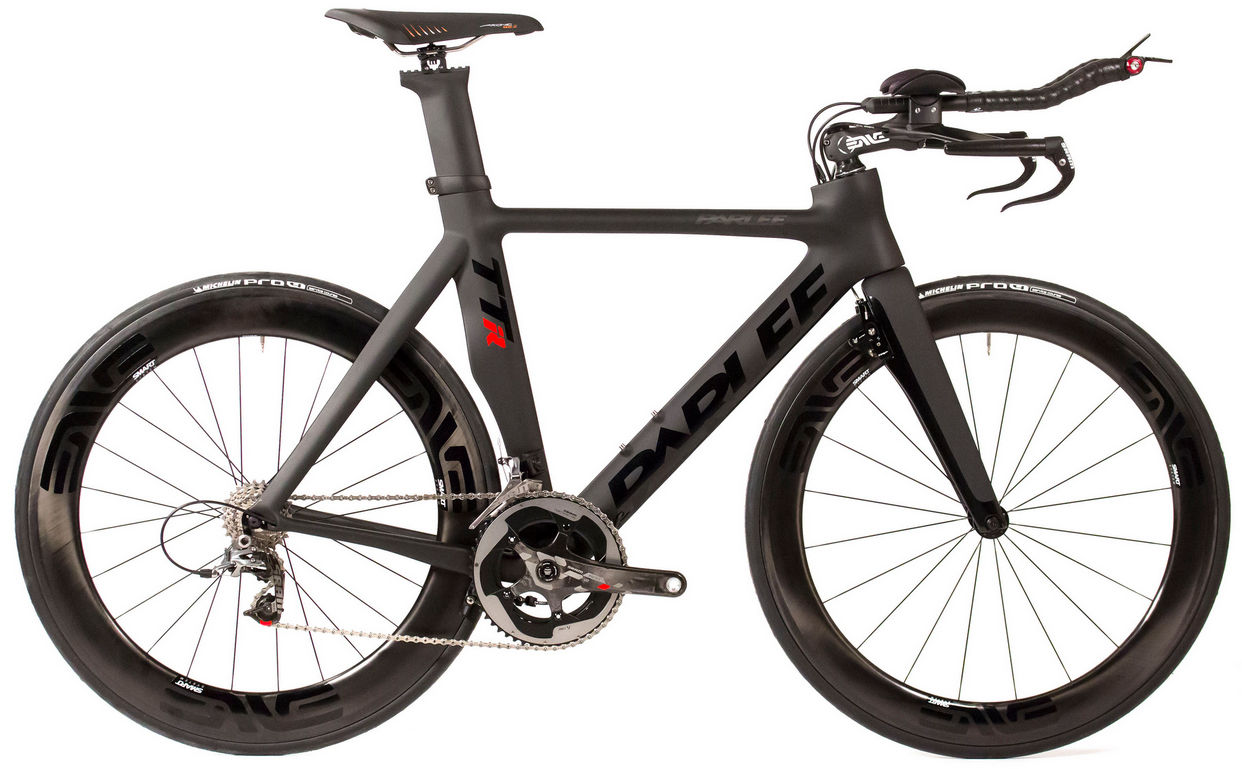

2015 Parlee TTiR geometry

Name: 2015 Parlee TTiR
Brand: Parlee

Full frame geometry for the 2015 Parlee TTiR, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Fork rake (mm)
S	495	385	77.5	72.5	90	495	734	70	395	43
M	505	403	77.5	72.5	100	515	743	70	395	43
S-T	514	379	77.5	72.5	110	495	753	70	395	43
M-T	524	397	77.5	72.5	120	515	762	70	395	43
ML	524	419	77.5	72.5	120	535	761	70	395	43
L	543	435	77.5	72.5	140	555	779	70	395	43
ML-T	543	413	77.5	72.5	140	535	780	70	395	43
L-T	562	429	77.5	72.5	160	555	798	70	395	43
XL	562	451	77.5	72.5	160	575	797	67	395	43
XL-T	581	445	77.5	72.5	180	575	816	67	395	43

All measurements in millimetres unless marked (°) for angles.
