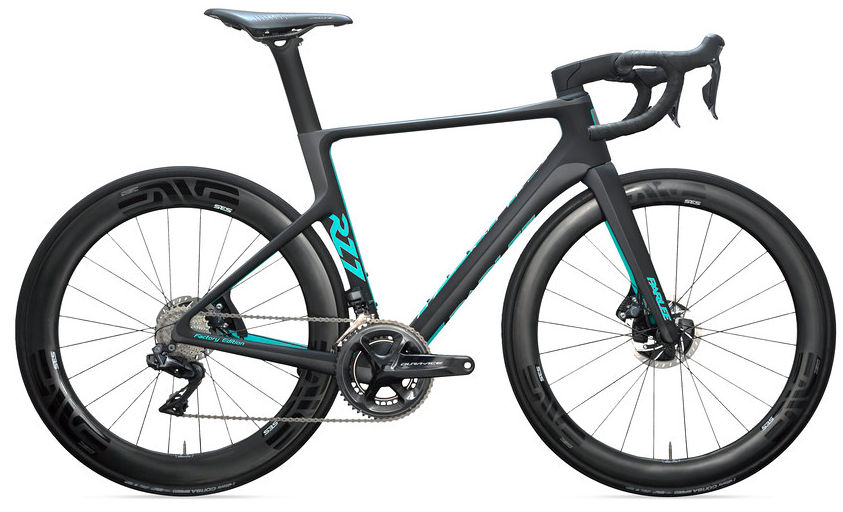

2019 Parlee RZ7 geometry
Full frame geometry for the 2019 Parlee RZ7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 499 | 368 | 74.2 | 71.2 | 99 | 510 | 737 | 75 | 566 | 415 | 969 | 45 | 69 |
| S | 524 | 377 | 73.6 | 72.2 | 120 | 530 | 752 | 75 | 573 | 415 | 976 | 45 | 63 |
| M | 553 | 388 | 73.5 | 73.2 | 143 | 550 | 769 | 75 | 583 | 415 | 986 | 45 | 57 |
| L | 571 | 398 | 73.2 | 73.2 | 167 | 570 | 802 | 75 | 600 | 415 | 1003 | 45 | 56 |
| XL | 595 | 411 | 73.2 | 73.2 | 193 | 590 | 823 | 75 | 620 | 415 | 1024 | 45 | 56 |
All measurements in millimetres unless marked (°) for angles.
