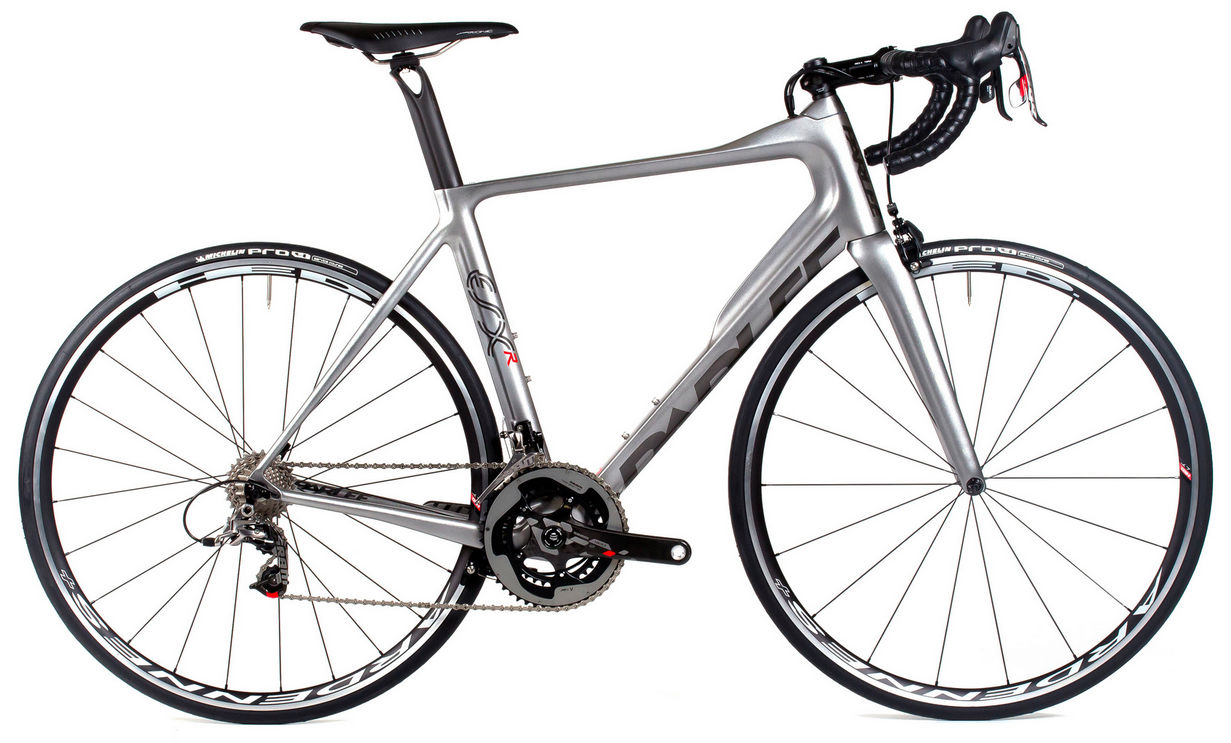

2015 Parlee ESX R geometry
Full frame geometry for the 2015 Parlee ESX R, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 551 | 367 | 74 | 72.5 | 139 | 525 | 455 | 752 | 70 | 567 | 410 | 967 | 43 |
| M | 569 | 376 | 73.5 | 73 | 156 | 545 | 472 | 769 | 70 | 578 | 410 | 978 | 43 |
| ML | 587 | 381 | 73 | 73.5 | 173 | 560 | 492 | 787 | 70 | 583 | 410 | 983 | 43 |
| L | 602 | 391 | 73 | 73.5 | 189 | 575 | 506 | 802 | 70 | 598 | 410 | 998 | 43 |
| XL | 625 | 389 | 72.5 | 73.5 | 212 | 585 | 520 | 823 | 70 | 602 | 410 | 1002 | 43 |
All measurements in millimetres unless marked (°) for angles.
