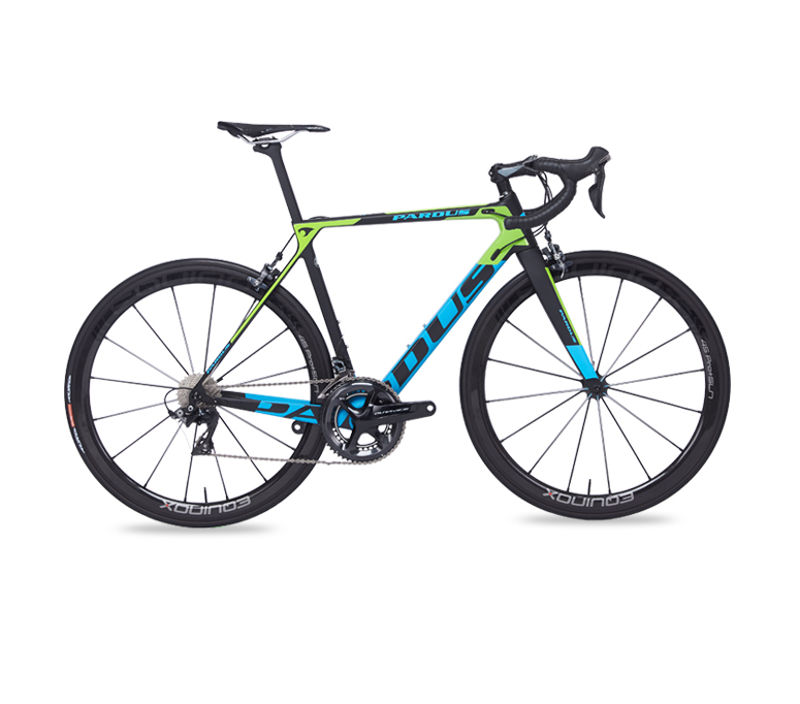

2021 Pardus Super 5 geometry
Full frame geometry for the 2021 Pardus Super 5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 511 | 358 | 73 | 70.5 | 115 | 513 | 68 | 415 | 970 | 53 |
| 51 | 535 | 367 | 73.2 | 72 | 134 | 530 | 68 | 415 | 972 | 53 |
| 54 | 555 | 378 | 73 | 73.1 | 154 | 547 | 68 | 415 | 980 | 43 |
| 56 | 585 | 385 | 73 | 73.5 | 178 | 563 | 68 | 415 | 993 | 43 |
| 58 | 610 | 394 | 73 | 73.5 | 205 | 580 | 68 | 415 | 1009 | 43 |
All measurements in millimetres unless marked (°) for angles.
