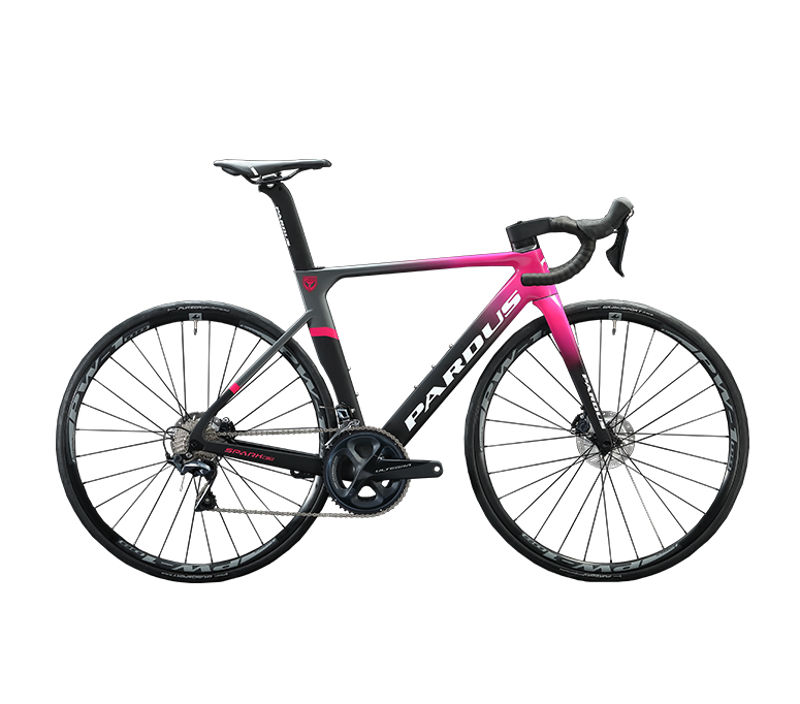

2021 Pardus Spark EVO geometry
Full frame geometry for the 2021 Pardus Spark EVO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 482 | 363 | 73 | 70 | 85 | 510 | 450 | 726 | 68 | 571 | 410 | 971 | 50 | 71 |
| S | 501 | 377 | 73 | 71.2 | 100 | 530 | 475 | 748 | 68 | 581 | 410 | 981 | 50 | 63 |
| M | 522 | 390 | 73 | 72.8 | 115 | 550 | 500 | 772 | 68 | 580 | 410 | 980 | 43 | 60 |
| L | 538 | 400 | 73 | 73.3 | 130 | 565 | 525 | 761 | 68 | 590 | 410 | 997 | 43 | 57 |
| XL | 562 | 403 | 73 | 73 | 155 | 575 | 550 | 816 | 68 | 600 | 410 | 1000 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
