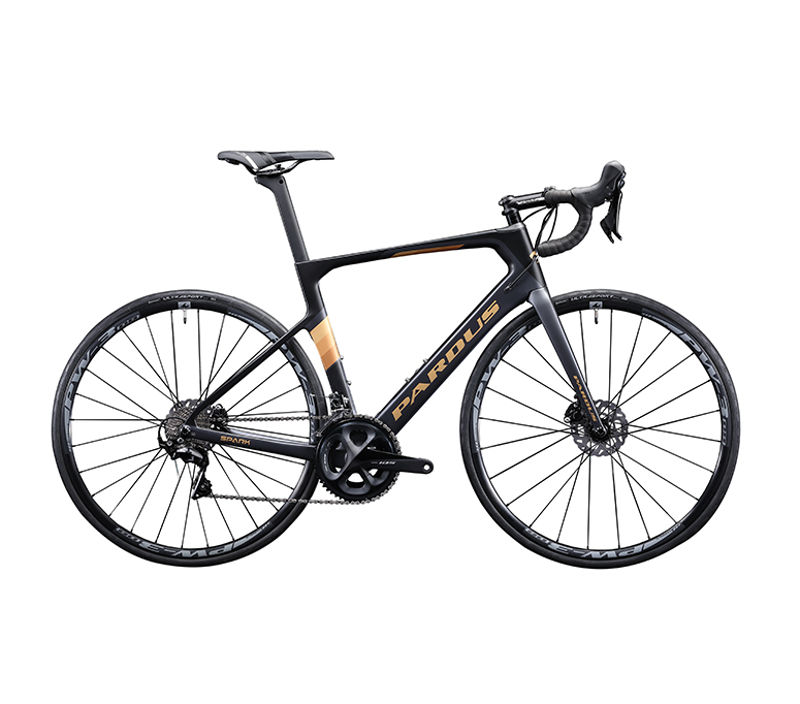

2021 Pardus Spark Disc geometry
Full frame geometry for the 2021 Pardus Spark Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 504 | 370 | 74.5 | 70.5 | 110 | 510 | 453 | 741 | 68 | 585 | 415 | 990 | 53 | 64 |
| S | 510 | 379 | 74.5 | 71 | 115 | 520 | 459 | 747 | 68 | 591 | 415 | 996 | 53 | 61 |
| M | 531 | 383 | 74 | 72 | 130 | 535 | 476 | 765 | 68 | 585 | 415 | 990 | 45 | 63 |
| L | 551 | 388 | 73.6 | 72.5 | 150 | 550 | 495 | 784 | 68 | 591 | 415 | 997 | 45 | 60 |
| XL | 572 | 393 | 73.3 | 73 | 170 | 565 | 512 | 803 | 68 | 598 | 415 | 1004 | 45 | 57 |
All measurements in millimetres unless marked (°) for angles.
