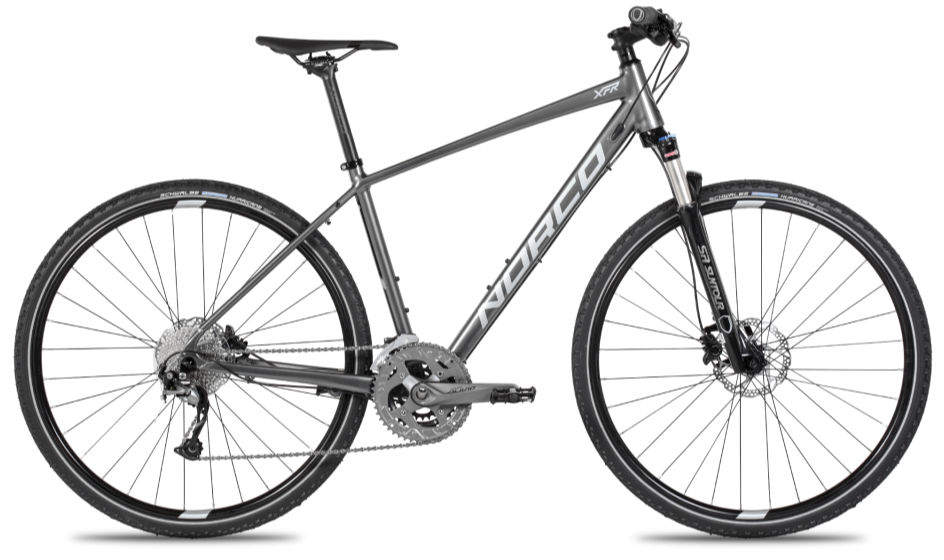

2017 Norco XFR MKII geometry
Full frame geometry for the 2017 Norco XFR MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 618 | 374 | 74.1 | 70 | 108 | 550 | 390 | 738 | 68 | 626 | 455 | 1073 |
| S | 628 | 391 | 73.7 | 70.5 | 115 | 575 | 430 | 762 | 68 | 642 | 455 | 1088 |
| M | 639 | 408 | 73.3 | 71 | 130 | 600 | 470 | 797 | 63 | 658 | 455 | 1106 |
| L | 648 | 425 | 72.9 | 71 | 140 | 625 | 510 | 820 | 63 | 679 | 455 | 1126 |
| XL | 658 | 442 | 72.5 | 71 | 150 | 650 | 550 | 842 | 63 | 699 | 455 | 1147 |
| XXL | 666 | 460 | 72.1 | 71 | 160 | 675 | 590 | 866 | 63 | 718 | 455 | 1166 |
All measurements in millimetres unless marked (°) for angles.
